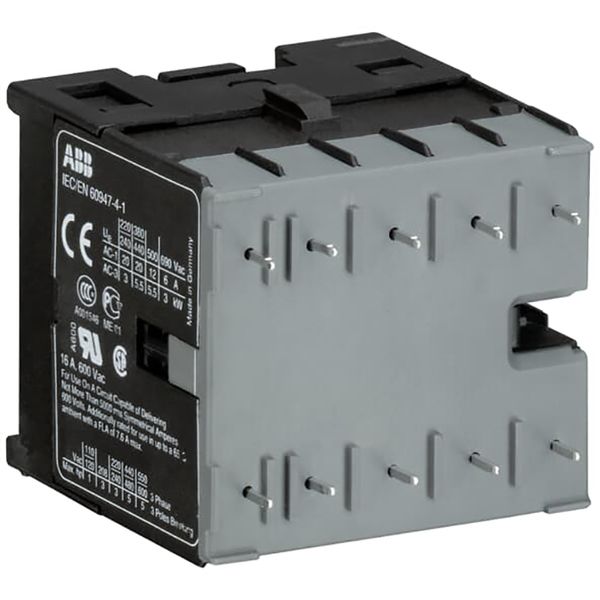

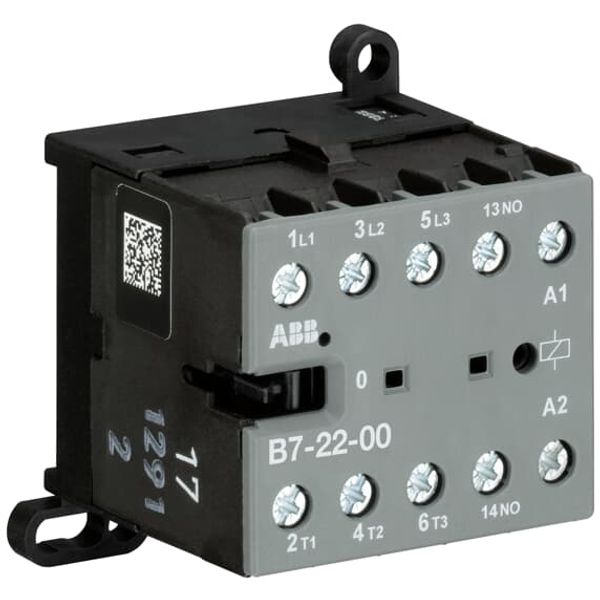

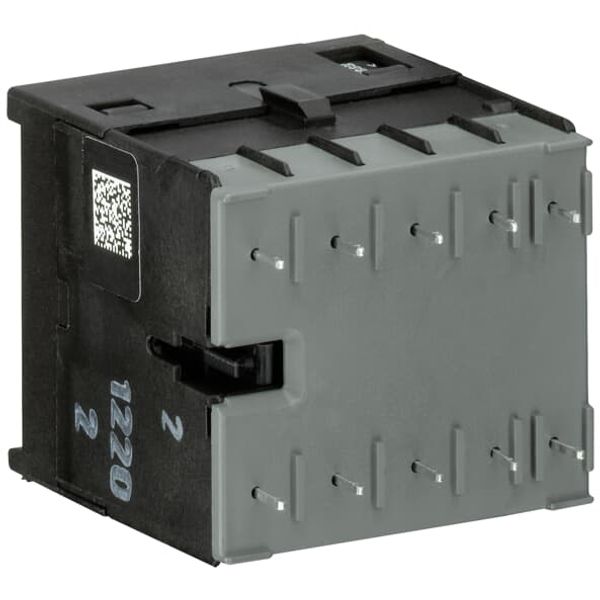

B7-22-00-P-01 Mini Contactor 24 V AC - 2 NO - 2 NC - Soldering Pins

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

33,73 € per pcs

This price is valid until 31.12.30

EAN: 4013614390319

MPN: GJL1311509R0001

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	B7-22-00-P-01 Mini Contactor 24 V AC - 2 NO - 2 NC - Soldering Pins
Brand	ABB
Categories	AC Power Contactors
Harmonized System Code	8536 5080 00
Rated operation power at AC-3, 400 V	5.5 kW
Number of normally open contacts as main contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-3, 400 V	12 A
Rated control supply voltage at AC 50 Hz	24 V
Rated control supply voltage at AC 60 Hz	24 V
Type of electrical connection of main circuit	PCB connection
Voltage type for actuating	AC

Packing level 1	4013614390319
Packing level 2	4013614417283

Modular version	No
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-1, 400 V	12 A
Rated operation power NEMA	2.2371 kW

Others Declaration RoHS Declaration DOC CE (Declaration of conformity CE) Product data sheet
