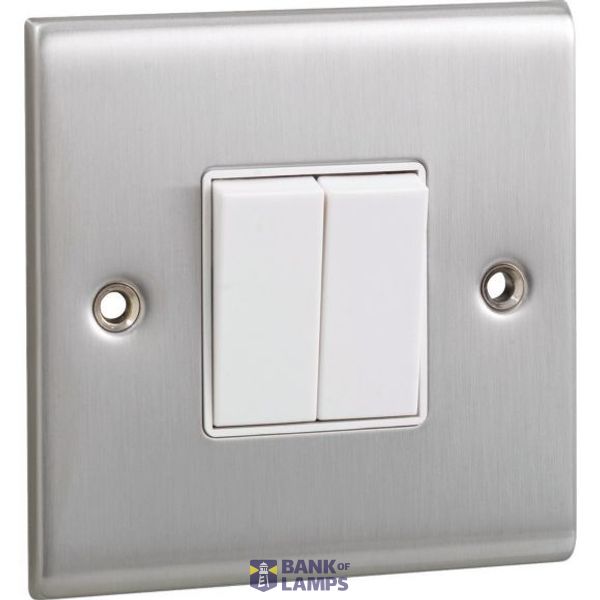

B022SS Eaton Moeller series Luxury finish range (COPA) - Wiring devices
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | B022SS Eaton Moeller series Luxury finish range (COPA) - Wiring devices |
| Brand | EATON |
| Country of origin* | IN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5007 00 |
| ETIM | EC001590 |
| Nominal voltage | 240 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element with full cover plate |
| Method of operation | Rocker/button |
| Rated current | 10 A |
| Type of fastening | Screw mounting |
| Wiring system | Two-way switch |
| Suitable for degree of protection (IP) | IP3X |
Packing details
| Packing level 1 | 5010826126193 |
Other Technical data
| Colour | Stainless steel |
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Screwed terminal |
| Illumination | No |
| Surface protection | Lacquered |
| Built-in depth | 25 mm |
| Feedback-signal contact | No |
| Material quality | Stainless steel |
| Material | Metal |
| Number of rockers | 2 |
| RAL-number (similar) | 0 |
| Switching current for fluorescent lamps | 10 AX |
| Push button switch | Yes |
| Washing machine switch | No |
| Surface finishing | Matt |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 35 mm |
| Label space/information surface | No |
| Function lighting | Illuminated (on) |
| Number of modules (module system) | 0 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Heating switch | No |
| Anti-bacterial treatment | No |
Description
Switch, Copa Fix, Switches, Current rating Amperage 10 AX, Rated operating voltage Volts 250V~, No. of gang 2 Gang, 2 Way, Front plate colour Stainless Steel, Front plate material Stainless Steel, White, Urea, Grey, Thermoplastic, Front plate / module dimensions 87 x 87 mm, Front plate depth 5.8 mm, Fixing Centres 60.3 mm, Recommended Minimum back box depth 25 mm, Weight (kgs) 0.099 kgs, Silver, Nickel, Brass, Terminal Screw Details Zinc Coated Steel with clear Passivation, Terminal capacity (L.N & E) 4 x 1.5mm², or 2 x 2.5mm², or 1 x 4.0mm² mm², Combination Head
