AXYL OPERA XL WO 30L 930 WB HFX ANT - LED floor recessed luminaire
Order only
Price (excl. VAT):
1 147,98 €
EAN: 9010757145115
MPN: 96701109
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | AXYL OPERA XL WO 30L 930 WB HFX ANT - LED floor recessed luminaire |
| Brand | Thorn |
| Categories |
In-ground luminaires
|
| Country of origin | IT |
| Harmonized System Code | 9405 1190 00 |
| Width | 280 mm |
| Colour rendering index CRI | 90-100 |
| Length | 280 mm |
| Height/depth | 245 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 3000 K |
| Max. system power | 11.1 W |
| Rated luminous flux according to IEC 62722-2-1 | 288 lm |
Packing details
| Packing level 1 | 9010757145115, 9010757145115 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Colour housing | Anthracite |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Adjustable | No |
| Built-in width | 0 mm |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Electrical connection with connector system | No |
| Light sharing | Symmetric |
| Over rollable | No |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Exchangeable control gear | No |
| Built-in height/depth | 240 mm |
| Power factor | 0.95 |
Downloads
Description

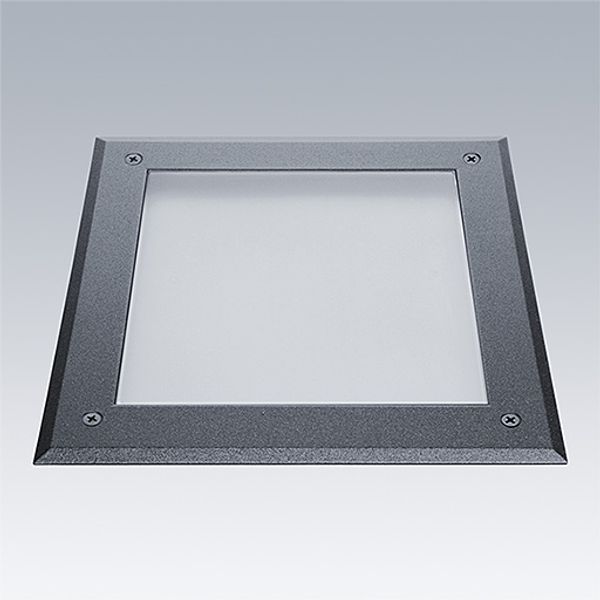

AXYL Opera, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. DALI-2 dimmable LED driver. , IP67, Impact strength: IK09. Housing: die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED..
Dimensions: 280 x 280 x 245 mm
Luminaire input power: 11.1 W
Luminaire luminous flux: 288 lm
Luminaire efficacy: 26 lm/W
Weight: 6.16 kg
