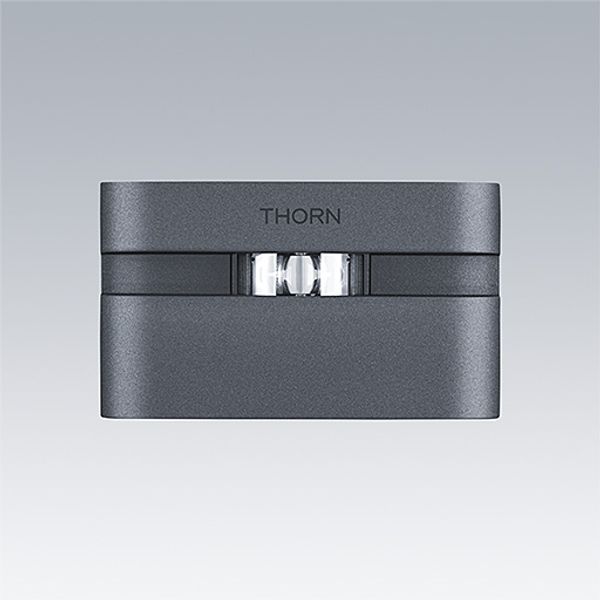

AXYL ETCH M WF 1L 830 EB RD ANT - LED wall mounted luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
351,76 €
EAN: 9010757155114
MPN: 96701619
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | AXYL ETCH M WF 1L 830 EB RD ANT - LED wall mounted luminaire |
| Brand | Thorn |
| Categories |
Modular luminaires
|
| Country of origin | IT |
| Harmonized System Code | 9405 1190 00 |
| Width | 90 mm |
| Colour rendering index CRI | 80-89 |
| Length | 150 mm |
| Height/depth | 40 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 3000 K |
| Max. system power | 4.7 W |
| Rated luminous flux according to IEC 62722-2-1 | 181 lm |
Packing details
| Packing level 1 | 9010757155114, 9010757155114 |
Other Technical data
| Protection class | III |
| Lamp holder | None |
| Colour housing | Anthracite |
| Voltage type | AC |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Suitable for suspended mounting | No |
| With power track | No |
| Material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Indirect |
| Light sharing | Symmetric |
| With point outlet | No |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | No |
| Power factor | 0.6 |
Downloads
Description
Axyl Etch, a wall mounted, architectural LED luminaire for decorative facade lighting, with elliptical beam distribution. Class III electrical.. DALI-2 dimmable Remote LED driver. , IP65, Impact strength: IK10. Housing: die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED..
Dimensions: 150 x 40 x 90 mm
Luminaire input power: 4.7 W
Luminaire luminous flux: 181 lm
Luminaire efficacy: 38 lm/W
Weight: 0.73 kg
