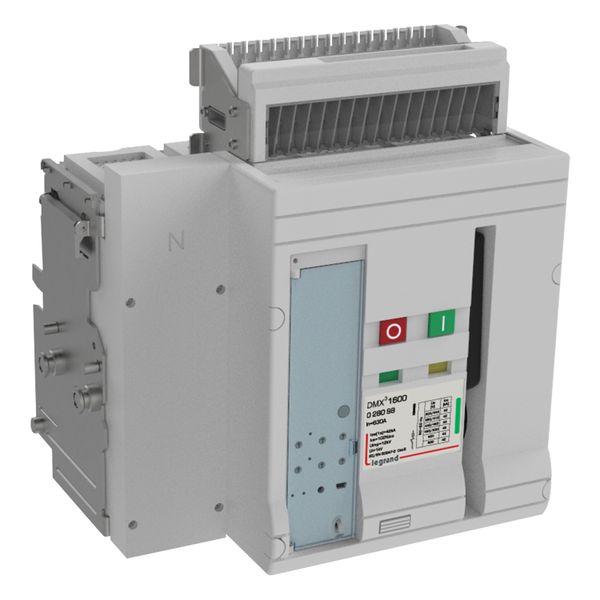

Automatic DMX³ 4P 630A + MP2 42kA -
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 3414971419858
MPN: 028098
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Automatic DMX³ 4P 630A + MP2 42kA - |
| Brand | Legrand |
| Categories |
Power Circuit Breakers
|
| Harmonized System Code | 8536 2090 00 |
| Rated permanent current Iu | 630 A |
| Number of poles | 4 |
| Rated voltage | 220-690 V |
| Degree of protection (IP) | IP30 |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 42 kA |
| Integrated earth fault protection | No |
| Device construction | Built-in device slide-in technique (withdrawable) |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| With integrated under voltage release | No |
| Overload release current setting | 252-630 A |
| Number of auxiliary contacts as change-over contact | 4 |
| Position of connection for main current circuit | Back side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Other |
| Type of control element | Push button |
| Adjustment range short-term delayed short-circuit release | 945-6300 A |
| Adjustment range undelayed short-circuit release | 1260-42000 A |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| DIN rail (top hat rail) mounting optional | No |
| Complete device with protection unit | Yes |
