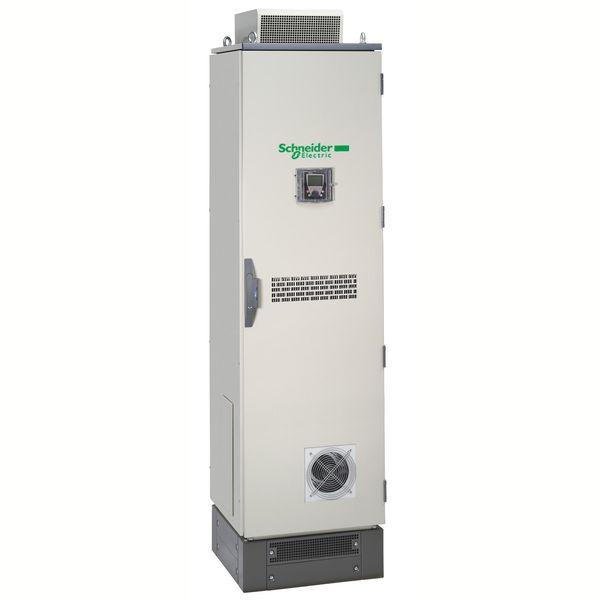

ATV61 160kW IN KAST SEPARATE AIR FLOW IP
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
88 270,95 €
EAN: 3389118336018
MPN: ATV61EXS5C16Y
Package: 1
Estimate delivery time at our warehouse (approx.):
6-9 weeks
Technical Information
| Item condition | New |
| Manufacture name | ATV61 160kW IN KAST SEPARATE AIR FLOW IP |
| Brand | Schneider Electric |
| Categories |
Frequency converter =< 1 kV
|
| Country of origin | AT |
| Mains voltage | 690 V |
| Mains frequency | 50/60 Hz |
| Number of phases input | 3 |
| Relative symmetric net voltage tolerance | 10 % |
| Relative symmetric net frequency tolerance | 0 % |
Packing details
| Packing level 1 | 3389118336018 |
Other Technical data
| Width | 1000 mm |
| Height | 2362 mm |
| Depth | 642 mm |
| With control element | Yes |
| Number of digital inputs | 7 |
| Number of digital outputs | 2 |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 2 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | Yes |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Degree of protection (IP) | IP54 |
| With PC connection | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| 4-quadrant operation possible | Yes |
| Number of interfaces PROFINET | 0 |
| Type of converter | Other |
| Number of phases output | 3 |
| Integrated breaking resistance | No |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | Yes |
| Max. output frequency | 500 Hz |
| Max. output at linear load at rated output voltage | 160 kW |
| Max. output at quadratic load at rated output voltage | 0 kW |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Max. output voltage | 480 V |
| Nominal output current I2N | 180 A |
| Supporting protocol for BACnet | No |
Description
ATV61 160kW IN KAST SEPARATE AIR FLOW IP
