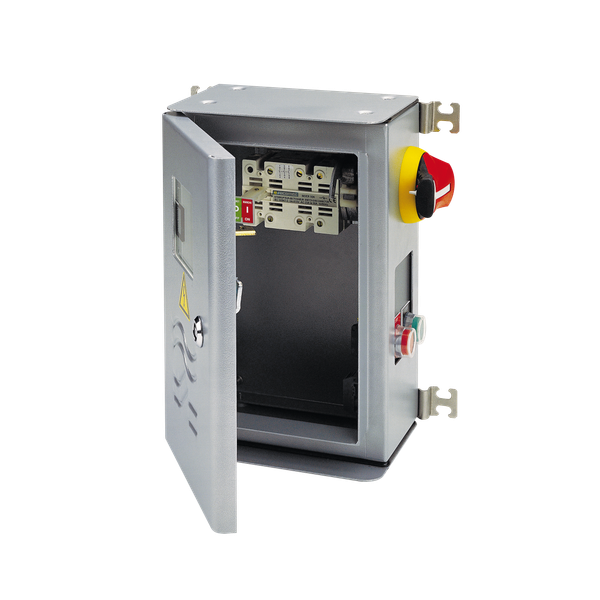

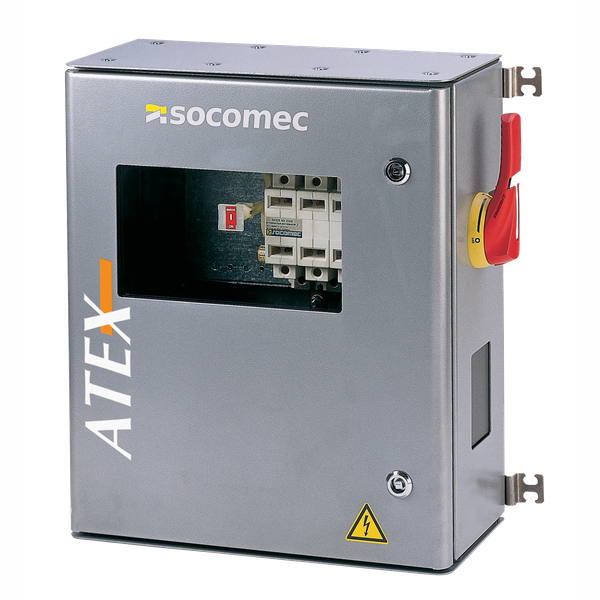

ATEX steel safety enclosure 3P 400A Bottom/Bottom connection
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
4 331,87 €
EAN: 3596031786275
MPN: 3V513040
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ATEX steel safety enclosure 3P 400A Bottom/Bottom connection |
| Brand | Socomec |
| Categories |
Switch Disconnectors
|
| Country of origin | FR |
| Harmonized System Code | 8536 5080 00 |
| Rated permanent current Iu | 400 A |
| Number of poles | 3 |
| Rated operating voltage | 400-690 V |
| Degree of protection (IP), front side | IP65 |
| Version as main switch | No |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | Yes |
Packing details
| Packing level 1 | 3596031786275 |
Other Technical data
| Number of switches | 1 |
| Interlockable | Yes |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Bolt connection |
| Version as emergency stop installation | Yes |
| Type of control element | Door coupling rotary drive |
| Colour control element | Other |
| Suitable for floor mounting | No |
| Max. rated operation voltage Ue AC | 690 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Complete device in housing |
| Version as reversing switch | No |
| Degree of protection (NEMA) | Other |
Downloads
Description
ATEX STEEL SAFETY ENCLOSURE 3 POLES 400 A SIDE OPERATION AREA 21 AND 22
