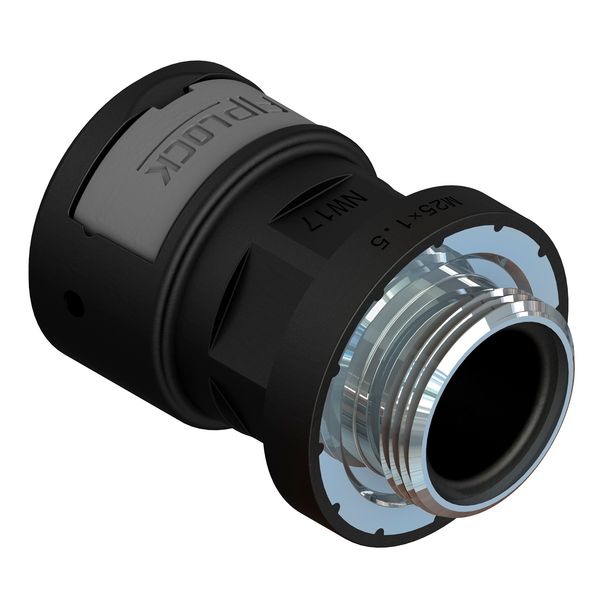

ASPA-12M16MB-5 zwart Kunstst. wartel met metalen M.draad kort
Order only
Price (excl. VAT):
Price by request
EAN: 4049504227120
MPN: 4890472600
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | ASPA-12M16MB-5 zwart Kunstst. wartel met metalen M.draad kort |
| Brand | FRÄNKISCHE |
| Categories |
Cable Hoses
|
| Harmonized System Code | 3917 4000 00 |
| Material | Polyamide (PA) |
| Nominal diameter | 12 mm |
| Nominal size in inch | Other |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Packing details
| Packing level 1 | 4049504227120 |
Other Technical data
| Colour | Black |
| Model | Straight |
| Type of connection | Thread |
| Thread length | 5 mm |
| Total length | 40 mm |
| Construction type | External thread |
| Operating temperature | -50-120 °C |
| Revolving thread | No |
| Thread type | Metric |
| Lowest inner diameter hose | 12 mm |
| Total height | 28.5 mm |
| Approved in combination with protective conduit UR | Yes |
| Approved in combination with protective conduit CSA | Yes |
| Approved in combination with protective conduit Lloyd's Register | No |
| Max. outer diameter hose | 15.7 mm |
| Thread material | Polyamide (PA) |
| Transparent | No |
| Thread connection size | M16 x 1.5 |
| Approved in combination with protective conduit according to DIN EN 61386-23 | No |
| Thread per inch | 16.93 |
| Material sealing | Thermoplastic elastomer (TPE) |
| Approved in combination with protective conduit VdTÜV/GGVSEB | No |
Downloads
Mounting instruction
Product data sheet
Declaration DOC CE (Declaration of conformity CE)
Dimensioned drawing
Declaration RoHS
Construction Products Regulation
Description
FIPLOCK®ONE rechte wartel ASPA-MMK met metrische korte metalen schroefdraad, van speciaal gemodificeerd polyamide 6, halogeenvrij, zelfdovend, uv-bestendig en voldoet aan de beschermklassen IP66, IP67, IP68 en IP69. Het 360°-vergrendelingssysteem kan met behulp van een gangbare sleufschroevendraaier eenvoudig worden geopend.
