Socket Asfora, 8dB
Order only
EAN: 3606480526350
MPN: EPH3200323
Package: 1
Box: 10
Pallet: 480
Price (excl. VAT)
6,70 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Asfora, TV socket intermediate, 8dB, cream |
| Brand | Schneider Electric |
| Categories |
TV Sockets
|
| Harmonized System Code | 8536 6910 00 |
| ETIM | EC000439 |
| Mounting method | Flush mounted (plaster) |
| Model | Loop-through socket |
| Number of outlets | 1 |
| Type of fastening | Mounting with claw and screw |
| Degree of protection (IP) | IP20 |
| Number of modules (module system) | 2 |
Packing details
| Packing level 1 | 3606480526350 |
| Packing level 2 | 3606480526357 |
| Packing level 3 | 3606480526351 |
| Packing level 4 | 3606480526350 |
Other Technical data
| Colour | Other |
| Halogen free | No |
| Cover | Complete housing |
| Surface protection | Untreated |
| Frequency | 5-862 MHz |
| Through loss at 860 MHz | 0 dB |
| Tap loss at 860 MHz | 0 dB |
| Material quality | Polyvinyl chloride (PVC) |
| Suitable for cable modem | No |
| Suitable for remote power supply | No |
| Material | Plastic |
| Tap loss at 2150 MHz | 0 dB |
| Through loss at 2150 MHz | 0 dB |
| RAL-number (similar) | 0 |
| Surface finishing | Glossy |
| Device width | 38 mm |
| Device height | 83 mm |
| Device depth | 83 mm |
| Anti-bacterial treatment | No |
Downloads
Description

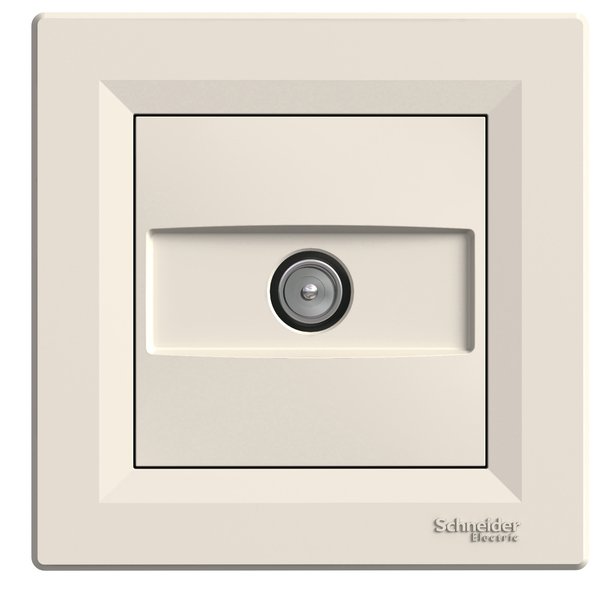

Schneider Electric Asfora TV socket EPH3200323 in color cream is a complete product with 1 outlet. The current flow of this TV socket is no. The TV socket type is intermediate socket (passage), and the TV connector is male IEC 9.52 mm. The fixing mode of this device is claws. It is 83 mm in width, 83 mm in height, and 38 mm in depth, with a projecting depth of 10 mm. This TV socket enables flush mounting, making its box not protruding the wall. The surface finish is glossy, delivering an elegant and high-end feeling to a room. The connection terminals of this TV socket are screwless terminals. Being reliable and resistant enough, it reaches IP20. Being made of ABS (acrylonitrile butadiene-styrene) material, this TV socket is very reliable and resistant. The conductor material of copper makes it more reliable. Also, it has the quality label of CE. Besides, this is a green premium product, taking care of your family as much as possible. And it is mercury free as well as heavy metal free, taking care of the environment all the time. In addition, this TV socket is specially designed for residential, small commercial, facilitating the daily needs easily and safely. Asfora is a range of wiring devices including light switches, dimmers, power and communication sockets, and controllers for blinds. The sleek, elegant design harmonizes perfectly with virtually any interior As pleasing to the touch as they are to the eye, Asfora products are made from high-quality materials that won't yellow over time.
