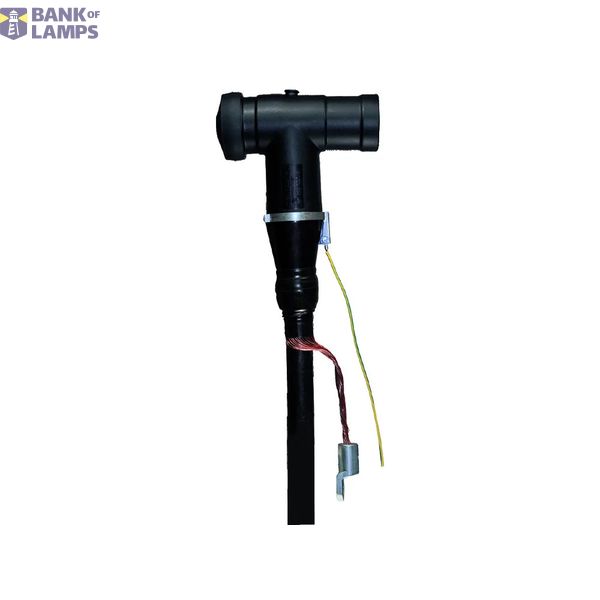

T-Connector CTS 36kV 630A
Order only
EAN: 4010311172491
MPN: 356660
Package: 1
Pallet: 32
Price (excl. VAT)
505,00 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | T-Connector CTS 36kV 630A |
| Brand | CellPack |
| Categories |
Other Products
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8547 9000 00 |
| ETIM | EC003521 |
| Suitable for outdoor use | No |
| Suitable for number of cores | 1 |
| Nominal cross section | 240-400 mm² |
| Connection type conductor | Screw connection |
| Earthing cable length | 0.7 m |
| Rated voltage U0/U (Um) | 19/33 (36) kV |
| Nominal current according to EN 50180/EN 50181 | C (630 A) |
| Type of plug termination | T-connector |
Packing details
| Packing level 1 | 4010311172491, 4010311172491 |
| Packing level 2 | 4010311172491 |
Other Technical data
| Width | 85 mm |
| Height | 265 mm |
| Screened | Yes |
| Length | 194 mm |
| With cable lug | Yes |
| Suitable for indoor use | Yes |
Description
T-shaped separable connector for polymeric cables for outer cone system terminals type C
