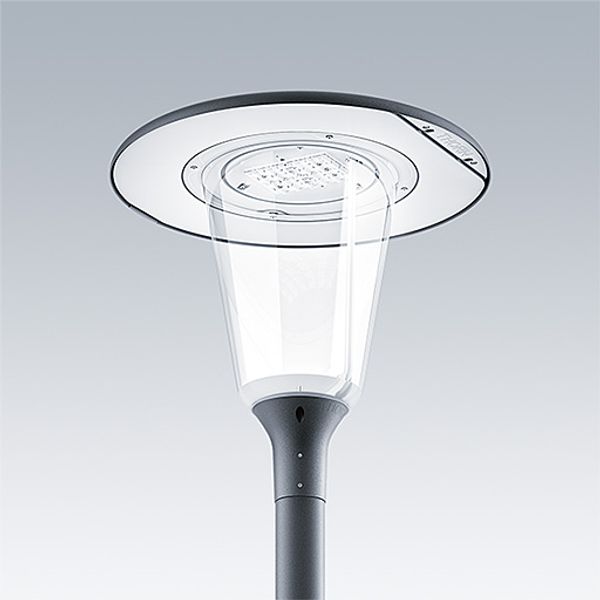

ARW 24L70-730 ES-S CL CL2 D5 T76 ANT - LED post-top amenity luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010299217431
MPN: 92924217
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | ARW 24L70-730 ES-S CL CL2 D5 T76 ANT - LED post-top amenity luminaire |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | RS |
| Harmonized System Code | 9405 4239 00 |
| Colour rendering index CRI | 70-79 |
| Height/depth | 586 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000 K |
| Max. system power | 51 W |
| Rated luminous flux according to IEC 62722-2-1 | 7030 lm |
Packing details
| Packing level 1 | 9010299217431, 9010299217431 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Diameter | 602 mm |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
| Power factor | 0.97 |
Downloads
Description
A discreet, post top LED lantern with a timeless design. LED driver for 24 LEDs, driven at 700mA with Extensive Street (symmetrical) distribution. Class II electrical, IP66, IK10. Canopy and base: corrosion resistant die-cast powder coated aluminium suitable for C5 environments, finished textured anthracite (close to RAL7043). Enclosure: wide UV stabilised polycarbonate with clear finish. Complete with 3000K LED. Post top mounting to Ø76mm column. Pre-wired with 5m cable for DACH market.
Dimensions: Ø602 x 586 mm
Luminaire input power: 51 W
Luminaire luminous flux: 7030 lm
Luminaire efficacy: 138 lm/W
Weight: 12.35 kg
Scx: 0.172 m²
