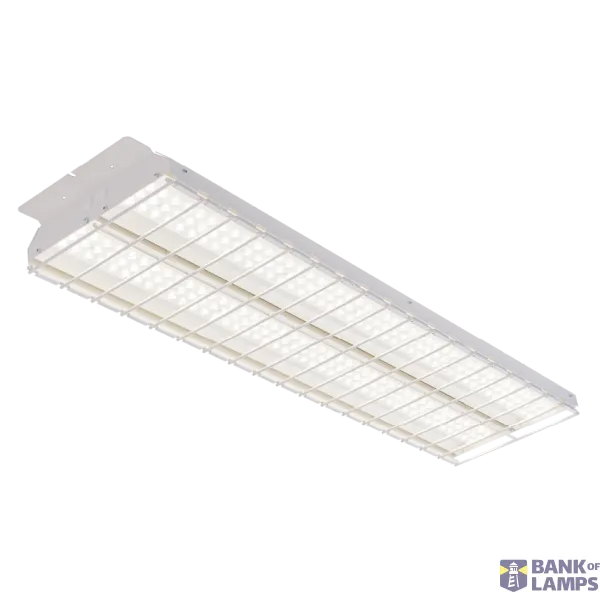

ARENA SPORT 1200 22500lm 840 DA
Order only
EAN: 5703821177191
MPN: 05703821177191
Package: 1
Price (excl. VAT)
526,09 €
per unit
MOQ: 1
EDT to our warehouse: 3-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | ARENA SPORT 1200 22500lm 840 DA |
| Brand | SG Armaturen |
| Categories |
Wall and ceiling luminaires
Ceiling lighting Surface mounted lighting |
| ETIM | EC002892 |
| Width | 296 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 1256 mm |
| Height/depth | 77 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK00 |
| Nominal voltage | 220-230 V |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 176 W |
Packing details
| Packing level 1 | 5703821177191 |
Other Technical data
| Protection class | I |
| Outer diameter | 0 mm |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 176 W |
| Type of grid | Other |
| Type of control gear | LED operating device voltage-controlled |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 7 |
| Housing material | Steel |
| Built-in length | 0 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Nominal current | - mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Through wiring included |
| Rated life time L70/B50 at 25 °C | 0 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | 25 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Other |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | Yes |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
| Surface protection housing | Other |
| Power factor | 100 |
Downloads
Description
Arena Sport 1200 296mm White Medium 22190lm 4000K Ra>80 DALI-2
