ARC WW 1/10W LED930 DIM 3CU AZM - LED wallwasher spotlight
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
928,92 €
EAN: 4053167295556
MPN: 60714561
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | ARC WW 1/10W LED930 DIM 3CU AZM - LED wallwasher spotlight |
| Brand | Zumtobel |
| Categories |
Track lights and accessories
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 40 mm |
| Colour rendering index CRI | 90-100 |
| Length | 321 mm |
| Height/depth | 212 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 3000 K |
| Max. system power | 10 W |
| Rated luminous flux according to IEC 62722-2-1 | 800 lm |
| Luminaire efficacy | 80 lm/W |
Packing details
| Packing level 1 | 4053167295556, 4053167295556 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Busbar adapter |
| Colour housing | Anthracite |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Connectable conductor cross section | 1.5-2.5 mm² |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | Yes |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 40 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | Yes |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 29 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.9 |
Downloads
Description

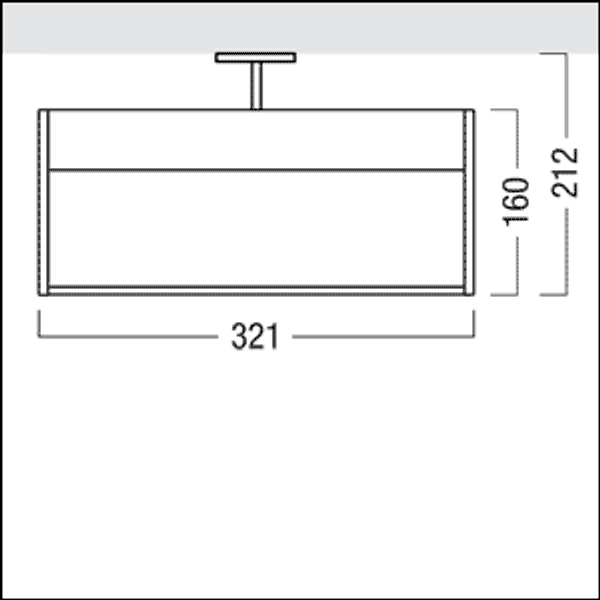

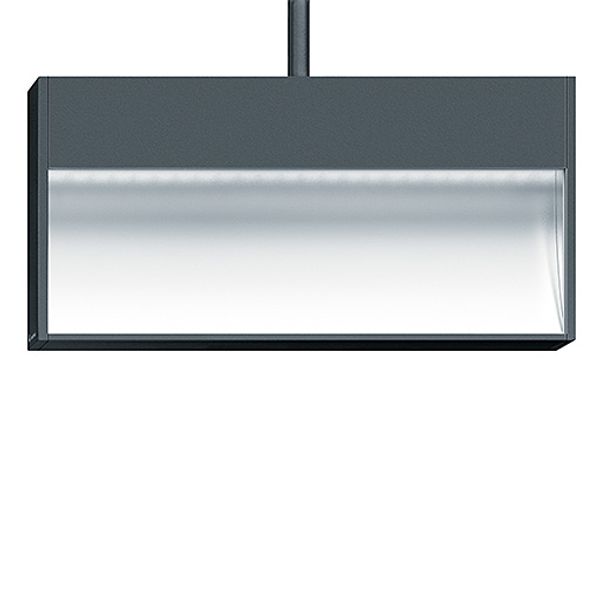

LED linear wallwasher spotlight, anthracite; with stabilised colour temperature "Stable White"; optimised for the efficient and uniform lighting of vertical wall surfaces up to 7m height, and objects in museums, exhibitions and art galleries; Luminaire with 3-phase adapter (for 3-phase/L3+DALI track); Luminaire with dimming directly over luminaire; lamp(s): 1/10 W LED930, asymmetric light distribution (LED module precisely matched to this); Colour rendering Ra > 90, colour temperature 3000 K (warm white); Chromaticity tolerance (initial MacAdam): 3; Luminaire luminous flux: 800 lm, Luminaire efficacy: 80 lm/W; UVA-free and IR-free light; service life: 50000 h for luminous flux at 80% of initial value; illuminance can be dimmed from 5-100 %; mains voltage: 220-240V/ 50/60Hz; spotlight can be rotated through 365° and Spotlight unit tilted through ±15°; housing of extruded aluminium section with end caps of die-cast aluminium; surface: microtextured anthracite paint finish; outstanding glare reduction due to spotlight design, LED light source not directly visible; specular reflector of pure aluminium silver anodised; with protective cover of polycarbonate; dimensions: 321x40x212 mm; weight: 1.48 kg;
Note: must not be wall-mounted; must be installed in ceiling for use as point outlets.
