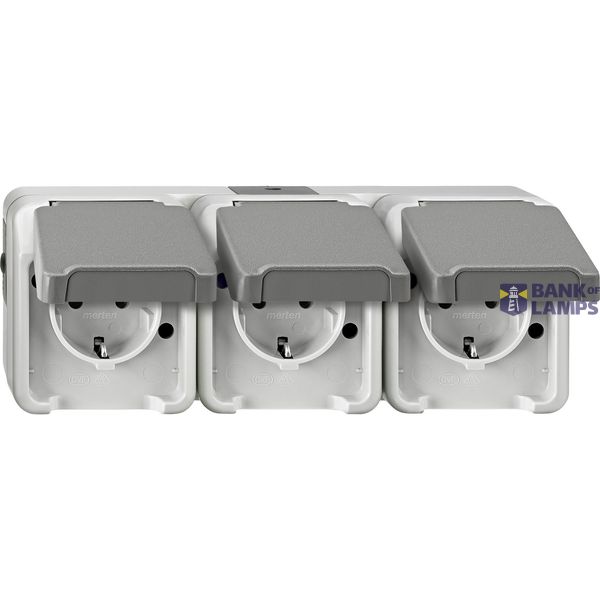

AQUASTAR WCD 3V HORIZONTAAL IP44 GRIJS
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | AQUASTAR WCD 3V HORIZONTAAL IP44 GRIJS |
| Brand | Schneider Electric |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC000125 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Surface mounted (plaster) |
| Colour | White |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Other |
| Surface protection | Untreated |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| Frequency | 50-60 Hz |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | Yes |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with screw |
| RAL-number (similar) | 9003 |
| Impact strength | IK02 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP44 |
| Device width | 65 mm |
| Device height | 65 mm |
| Device depth | 41 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | No |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 3606480567223 |
