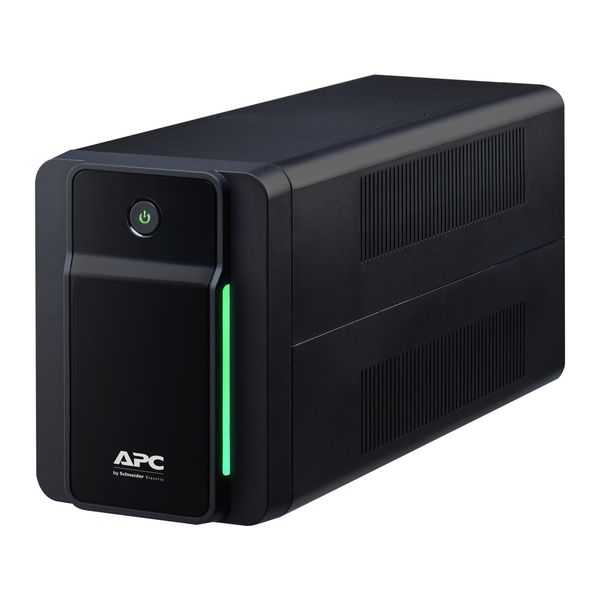

The device provides battery backup and surge protection for connected electronic systems during power interruptions and fluctuations.
**Compatibility**
Supports integration with home or office electrical setups.
Designed for use with computers, networking equipment, point-of-sale devices, and low-power appliances.
Features IEC outlets compatible with standard plugs of supported devices.
Can communicate via USB for status monitoring when connected to a computer system using PowerChute software.
**Housing**
Enclosed in a black plastic housing resistant to minor impacts and heat.
Compact tower form factor suitable for desk or floor placement.
Dimensions: 19 x 11.5 x 25 cm (H x W x D).
**Connectors**
Equipped with six IEC C13 output sockets: four battery-backed outlets, two surge-only outlets without backup functionality.
Input connection uses an IEC C14 inlet requiring appropriate cable matching the socket specification on site equipment/power source.
**Operating Conditions**
750VA/400W maximum capacity rating; supports small to mid-range load requirements within specified limits.
Input voltage operating range of 170V–280V at frequencies of 50Hz–60Hz ±1%.
Output wave type is stepped approximation to sine wave under battery operation mode.
Non-operational storage acceptable from -15°C to +40°C; operational temperature limited between 0°C and +40°C.
Relative humidity tolerance up to 95% non-condensing conditions permitted.
Installation Notes & Limitations:
- Ensure ventilation around the unit is unobstructed as cooling relies primarily on passive dissipation methods.
- Avoid excessive loads exceeding rated wattage (400W) as this may result in shutdown or failure mode activation.
- Do not operate outdoors—unit designed strictly for indoor environments meeting advised parameters above.
- Replace internal battery exclusively using certified replacements after reaching service recommendations/life end detected cycle frequency indicator alerts apply firmly
