AP9 Junction box IP65 White IP65
In vendor's stock
Minimal order quantity: 5
Price (excl. VAT):
2,41 €
per pcs
Subtotal: 12,05 €
MOQ: 5
EAN: 6410016125095
MPN: 2TKA140012G1
Package: 5
Box: 50
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | AP9 Junction box IP65 White IP65 |
| Brand | ABB |
| Categories |
Surface Mounted Junction Boxes
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 3925 9020 00 |
| Halogen free | Yes |
| Equipped with | None |
| Rated insulation voltage Ui | 500 V |
| Sealable | Yes |
| Max. conductor cross section | 2.5 mm² |
| Weatherproof | Yes |
| Degree of protection (IP) | IP65 |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 6410016125095 |
| Packing level 2 | 6410016125095 |
Other Technical data
| Mounting method | Universal |
| Colour | White |
| Width | 86 mm |
| Depth | 39 mm |
| Shape | Square |
| Surface protection | Untreated |
| Length | 86 mm |
| Circuit integrity | None |
| Operating temperature | -25-60 °C |
| Material | Plastic |
| Number of inlets | 14 |
| Explosion-tested version | No |
| Cover attachment | Snapped on |
| With screening | No |
| For tube diameter | Other |
| For Ex-zone gas | None |
| Tackable | No |
| Type of housing feed-through | Seal membrane |
| For Ex-Zone dust | None |
| Cover model | Blind cover |
| Castable | No |
| With casting compound | No |
| Transparent cover | No |
| Degree of protection (NEMA) | Other |
| Mounting in the soil | No |
| Mounting under water | No |
Description

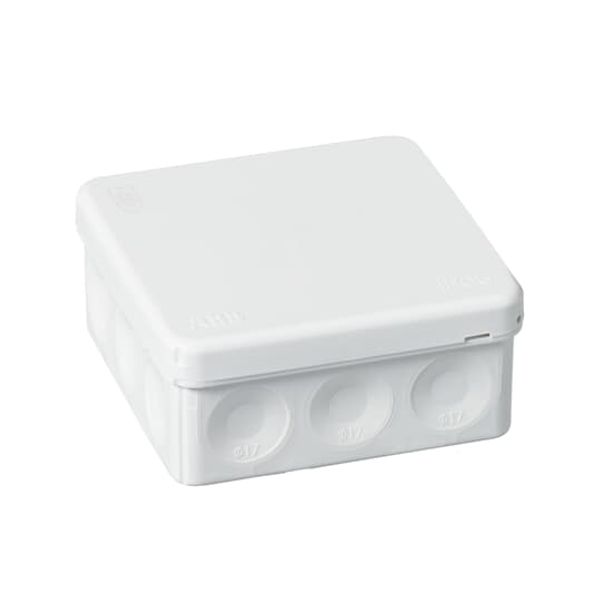

The square junction box AP9 (2,5 mm², 500 V) is equipped with 12 membrane cable entries for cables up to Ø 17 mm in the sides, and two at the bottom for cables up to Ø 19 mm . Cables are easy to connect by simply inserting the stripped ends through the inlets. The box locks by snapping and can be opened by inserting a screwdriver (for example) into the opening slots - no screws are needed. The box can be furnished with strain-reliefs AS9, AS9.1 and AS9.3, which fits for Ø 6 - 15,5 mm cable. VDE-approved. Mounting temperature -25...+60 °C. Made of halogen free material (IEC/61249-2-21).
