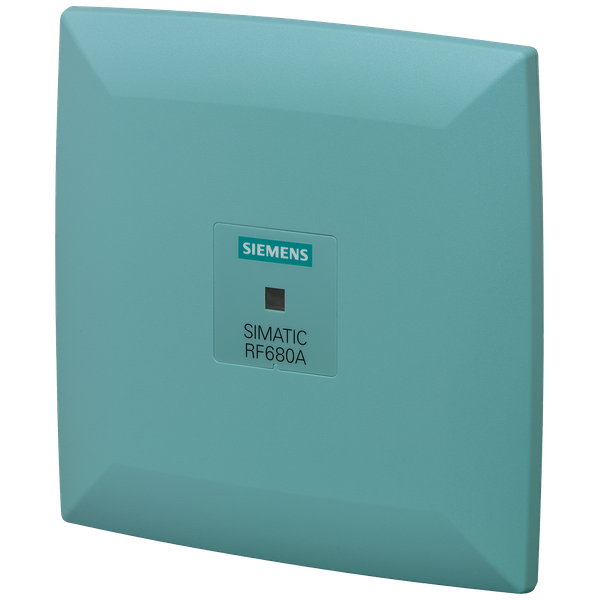

Antenna RF680A, RF600, switchable linearly circular, 865-928 MHz, IP65

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

392,65 € per pcs

This price is valid until 01.10.25

EAN: 4047622367605

MPN: 6GT2812-2GB08

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Antenna RF680A, RF600, switchable linearly circular, 865-928 MHz, IP65
Brand	Siemens
Categories	Routers and Network Devices
Country of origin	DE
Harmonized System Code	8517 7900 00
Connection type	Plug
Max. transmission range	0 m
Aerial gain	0 dBi
Degree of protection (IP)	IP65
Ambient temperature during operating	-25-75 °C

Packing details

Packing level 1

4047622367605

Other Technical data

Width	198 mm
Height	198 mm
Depth	60 mm
Length of connection cable	0 m
Indoor	Yes
With connection cable	No
Outdoor	No
Beam angle horizontal	0 °
Beam angle vertical	0 °
Omni directional	No
MIMO (Multiple-Input Multiple-Output )	No

Description

SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, -25 to +75 °C. Switchable polarization simplifies project planning. Reliable identification even in demanding wireless environments. Optimum forward and reverse ratio minimizes reflections and the resulting unwanted side effects. This facilitates system design and commissioning. Large integrated LED display allows fast and detailed diagnostics of detection and error status. Global application thanks to wide input voltage range. High degree of protection (IP65) and extended temperature range facilitate use in harsh industrial environments and in outdoor spaces.
