ANDHO mini, 13 W, 1400 lm, 827, anthracite, on/off Garden spotlights,
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
287,10 €
EAN: 4051859922766
MPN: 722278.0031.2
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ANDHO mini, 13 W, 1400 lm, 827, anthracite, on/off Garden spotlights, |
| Brand | RZB |
| Categories |
Luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 4239 00 |
| Width | 114 mm |
| Colour rendering index CRI | 80-89 |
| Length | 397 mm |
| Height/depth | 210 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK07 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 2700 K |
| Max. system power | 13 W |
| Rated luminous flux according to IEC 62722-2-1 | 1400 lm |
| Luminaire efficacy | 108 lm/W |
Packing details
| Packing level 1 | 4051859922766, 4051859922766 |
Other Technical data
| Protection class | I |
| Reflector | Other |
| Lamp holder | None |
| Connection type | Other |
| Colour housing | Anthracite |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 13 W |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Nominal current | 54-59 |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 1400 lm |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-35 °C |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Reflector |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 16.3 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 23 |
| Max. number of luminaires per miniature circuit breaker B16 | 13 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 10 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Power factor | 0.55 |
Downloads
Description

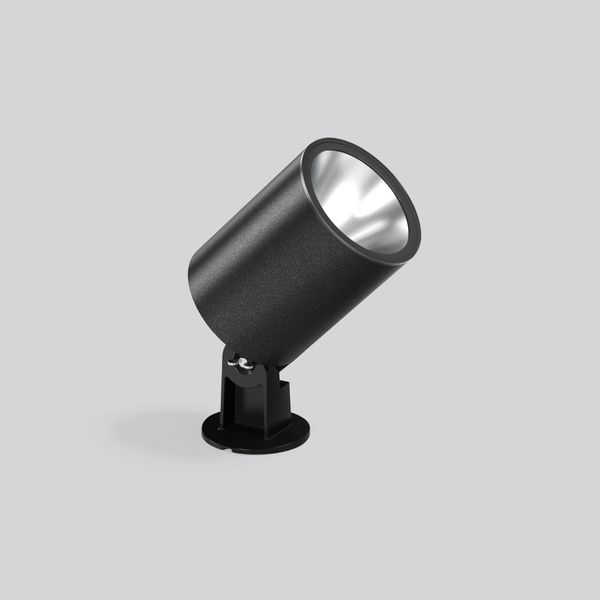

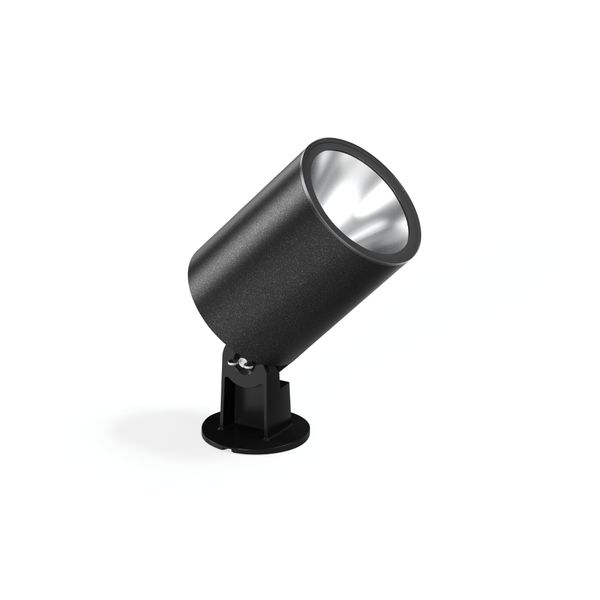

Powerful LED garden spot with peg. Housing: die-cast aluminium, seawater resistant powder-coated. Integral membrane valve for pressure compensation and avoidance of condensation. Reflector made of super-reflective MIRO-SILVER® for outstanding efficiency. Cover clear single-pane toughened glass, edge printed. Light distribution flood, wide beam. Peg made of fiber reinforced plastic. Driver integrated. With 5 m power supply cable, including safety plug.
