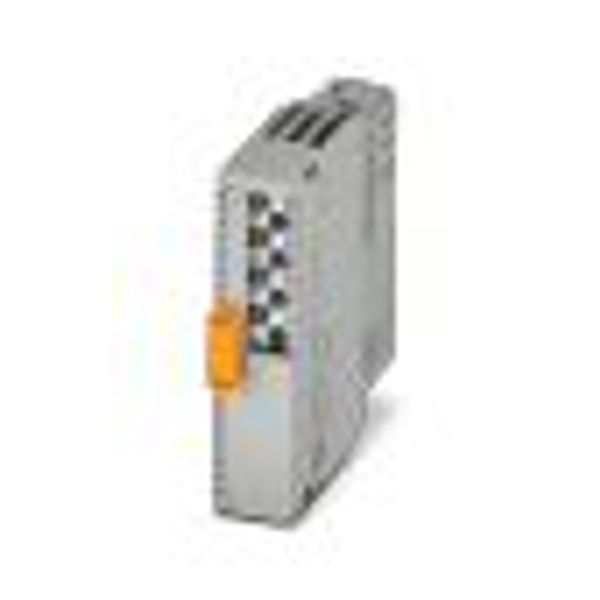

AXL SE AI4 I 4-20 - Analog module
In vendor's stock
Price (excl. VAT):
137,88 €
per pcs
EAN: 4055626887623
MPN: 1088062
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | AXL SE AI4 I 4-20 - Analog module |
| Brand | Phoenix Contact |
| Categories |
Industrial Fieldbus Modules
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9091 00 |
| Suitable for safety functions | No |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for Modbus | No |
| Type of electric connection | Other |
| Degree of protection (IP) | IP20 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Supply voltage AC 50 Hz | 0 V |
| Supply voltage AC 60 Hz | 0 V |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 4055626887623, 4055626887623 |
Other Technical data
| Width | 14.9 mm |
| Height | 62.2 mm |
| Depth | 62 mm |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Input, current | Yes |
| Input, voltage | No |
| Input, resistor | No |
| Input, resistance thermometer | No |
| Input, thermocouple | No |
| Input signal, configurable | No |
| Output, current | No |
| Output, voltage | No |
| Output signal configurable | No |
| Resolution of the analogue inputs | 12 Bit |
| Resolution of the analogue outputs | 0 Bit |
| Rail mounting possible | No |
| Fieldbus connection over separate bus coupler possible | Yes |
| System accessory | Yes |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Analogue inputs configurable | No |
| Analogue outputs configurable | No |
Description
Axioline Smart Elements, Analog input module, Analog inputs: 4, 4 mA ... 20 mA, connection technology: 2-conductor, degree of protection: IP20
