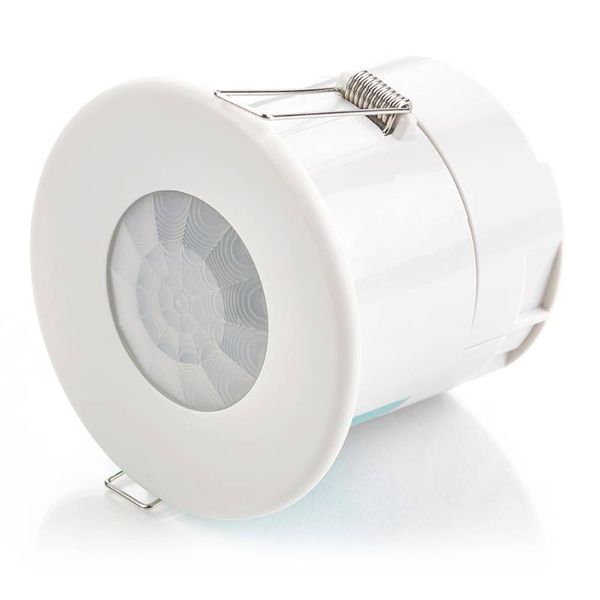

An-10 EBDSPIR detector ON/OFF
Order only
Price (excl. VAT):
126,50 €
EAN: 5012774622536
MPN: CP130013
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | An-10 EBDSPIR detector ON/OFF |
| Brand | Legrand |
| Categories |
Motion & Presence Sensors
|
| Harmonized System Code | 8536 5080 00 |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Model | Presence detector |
| Connection type | Screwed terminal |
| Frequency | 50 Hz |
| Max. transmission range frontally | 2.5 m |
| Max. transmission range sideways | 4 m |
| Max. switching power | 2300 W |
| Scan angle | 0 ° |
| Degree of protection (IP) | IP40 |
| Min. switch-on time | 10 s |
| Max. duty cycle | 99 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 2.8 m |
| Max. presence range | 50 m² |
| Max. switching power LED | 0 W |
| Sensor type | Passive infrared |
Other Technical data
| Halogen free | Yes |
| Surface protection | Untreated |
| Creep-under protection | Yes |
| Voltage type | AC |
| Switching-on delay | 1 s |
| Switch-off delay | 10 s |
| Built-in depth | 65 mm |
| With remote control | Yes |
| Diameter | 76 mm |
| Built-in width | 0 mm |
| Built-in diameter | 64 mm |
| Staircase monitoring | Yes |
| Bridging switch | No |
| Suitable for wireless transmission | Yes |
| Material quality | Thermoplastic |
| Temperature | 0-35 °C |
| Max. starting current | 80 A |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | No |
| Response value luminosity | 1-2000 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 8 m |
| Remote operation | Yes |
| HVAC-control | No |
| Constant light control | Yes |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| With signal unit | No |
| Control current | 3.8 mA |
| Teach-function for response value luminosity | No |
| Networkable | No |
| Forced switch off | Yes |
| Built-in length | 0 mm |
| Impact strength | IK05 |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 0-360 ° |
| Suitable for wall mounting | No |
| Pivoting range sensor, horizontal | 0 ° |
| Pivoting range sensor, vertical | 0 ° |
| Number of switching zones | 1 |
| With DALI interface | No |
| Forced switch on | Yes |
| Min. starting current | 0 A |
| Min. depth of built-in installation box | 0 mm |
| Suitable for ceiling mounting | Yes |
| Anti-bacterial treatment | No |
