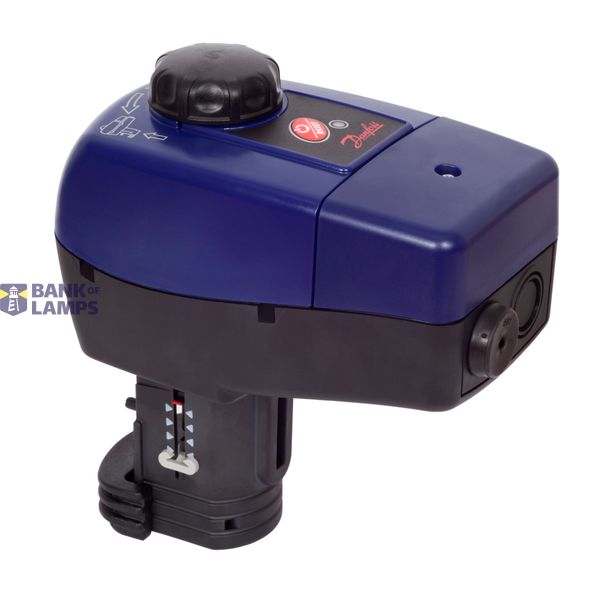

AME 435 QM
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | AME 435 QM |
| Brand | Danfoss |
| Country of origin* | DK |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8501 1093 00 |
| ETIM | EC011290 |
| Model | Linear |
| Control signal | 0 - 10 V / 4 - 20 mA |
| Regulation type on/off | No |
| Operating time | 7.5 s |
| Torque | 0 Nm |
| Stroke length | 20 mm |
| Supply voltage | 24 V AC |
Packing details
| Packing level 1 | 5710104034454 |
Other Technical data
| Width | 0 mm |
| Height | 0 mm |
| Depth | 0 mm |
| Housing material | Plastic |
| Ambient temperature | 55 °C |
| Suitable for manual operation | Yes |
| Potential free switch contact | No |
| Length of connection cable | 0 m |
| Explosion-proof | No |
| Regulation type modulating | No |
| Regulation type splitrange | No |
| Energy consumption in operation | 0 W |
| Energy consumption at rest | 0 W |
| Auxiliary contacts optional | No |
| Suitable for air accessory | No |
| Automatic travel recognition | Yes |
| With safety function | No |
| Deactivated when closed | No |
| Connection to stop valve | Brand-dependent |
| With mechanical setting indicator | Yes |
| Position reporting system | 0 - 10 V |
| Suitable for valve | Yes |
| Max. electric power input | 4.5 VA |
| Max. angle of rotation | 0 ° |
| Transmission | With cogwheels |
| Adjustable operating range | Yes |
| Return at zero supply voltage | No |
| Auxiliary contacts | No |
| End contacts | None |
| Adjusting force | 400 N |
| Self-adjusting travel length | Yes |
| Adjustable position feedback signal | No |
| With top flange direct mount according to ISO 5211 | No |
