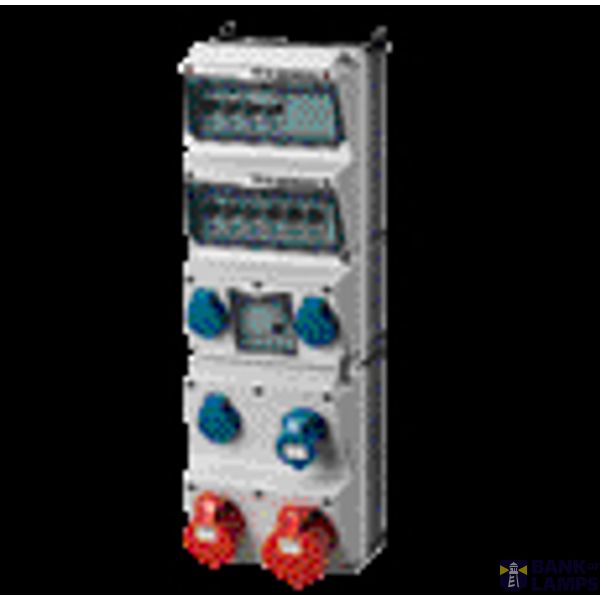

AMAXX contactdooscombinatie, IP44

Name: AMAXX contactdooscombinatie, IP44
Brand: Mennekes
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1 Not Available

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	AMAXX contactdooscombinatie, IP44
Brand	Mennekes
Country of origin	DE
Harmonized System Code	8537 1098 00
Colour	Grey
Width	225 mm
Height	650 mm
Depth	231 mm
Number of socket outlets with protective contact (type F)	3
Cable length	0 m
Protection	D0-system
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
CEE socket outlet 63 A	None
CEE socket outlet 125 A	None
Other fixtures and/or empty locations	0
Power supply/connection possibility	2 cables (ring line)
Handling	Wall mounting
Degree of protection (IP)	IP44
Number of miniature circuit breakers	0
Military model	No
Number of socket outlets Swiss standard type 13	0
Number of socket outlets Swiss standard type 15	0
Number of socket outlets Swiss standard type 23	0
Number of socket outlets Swiss standard type 25	0
Number of socket outlets Danish standard (earthing pin)	0

Packing details

Packing level 1

4015394243243

Downloads

Deep link REACH

Description

MENNEKES receptacle combination unit AMAXX ready wired for installation enclosure protection Type IP 44 enclosure: 1 AMAPLAST-enclosure 650 x 225 mm (h x w) lead-sealable, for internal or external fixing black base front cover electric grey RAL 7035 hinged cover with dual thread cover screws fusing fitted on pull out DIN rails below transparent window window open downwards and can be locked with padlock receptacles with angled plugging direction fitted with/ fused with: Pos. 01 1 CEE receptacle 32A 5p 400V 1 Neozed D02 3p (E18) Pos. 02 1 CEE receptacle 16A 5p 400V 1 Neozed D01 3p (E14) Pos. 03 1 CEE receptacle 16A 3p 230V 1 Neozed D01 1p (E14) Pos. 04 3 SCHUKO receptacles 16A 2p+E 230V 3 Neozed D01 1p (E14) Pos. 01-04 1 RCD 63A 4p IFN= 0,03 A cable entry/ supply 2 M 40 at the top and at the bottom (closed) 2 M 20 at the top and at the bottom (closed) terminal for 2 cables up to 5 x 25 mm² (flexible max. 16mm²)
