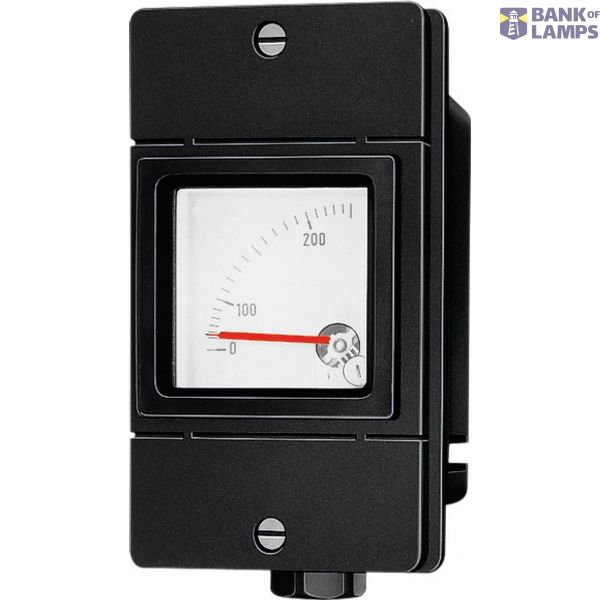

AM 72, DIRECT, 0-20/24 MA 0-100%/120% image 1
AM 72, DIRECT, 0-20/24 MA 0-100%/120% image 2
AM 72, DIRECT, 0-20/24 MA 0-100%/120% thumbnail 1
AM 72, DIRECT, 0-20/24 MA 0-100%/120% thumbnail 2
EATON

AM 72, DIRECT, 0-20/24 MA 0-100%/120%

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name AM 72, DIRECT, 0-20/24 MA 0-100%/120%
Brand EATON
ETIM EC002292
Model Built-in
Voltage type AC
Accuracy class 2.5
Measuring range 0-120 A
Measurement system Soft iron
Nominal end value of the scale 100 A

Packing details

Packing level 1 4250217426292

Other Technical data

Width 85 mm
Height 155 mm
Modular version No
Power loss 0.15 W
Transformer connection Yes
Max. needle deflection 90 °
Overcurrent scale Yes
Scales lighting No
Stay-set indicator No
Calibrated No

Description

Ex-e, Ex-i Measuring Instrument GHG 412 82, polyamide, 1xM25 Polyamide for Zone 1/21AM 72, direct measurement, 1 x M25, 0 - 20 / 24 mA 0-100 % / 120 % (Ri = 320 Ohm)
