EATON

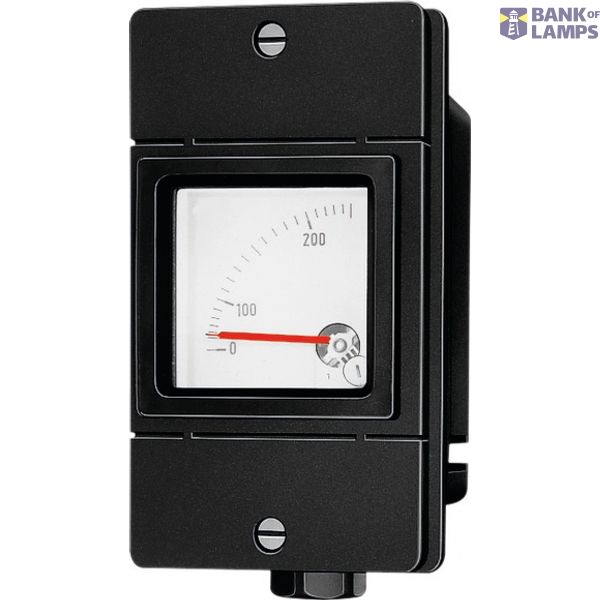

AM 72, C.T. N/1A, 1XM25, 0 - 150/ 225 A

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name AM 72, C.T. N/1A, 1XM25, 0 - 150/ 225 A
Brand EATON
ETIM EC002292
Model Built-in
Voltage type AC
Accuracy class 2.5
Measuring range 0-225 A
Measurement system Soft iron
Nominal end value of the scale 150 A

Packing details

Packing level 1 4250217426285

Other Technical data

Width 85 mm
Height 155 mm
Modular version No
Power loss 0.15 W
Transformer connection Yes
Max. needle deflection 90 °
Overcurrent scale Yes
Scales lighting No
Stay-set indicator No
Calibrated No

Description

Ex-e Measuring Instrument GHG 412 82, polyamide, 1xM25 Polyamide for Zone 1/21AM 72, C.T. connection n/1A, 1 x M25, 0 - 150 / 225 A
