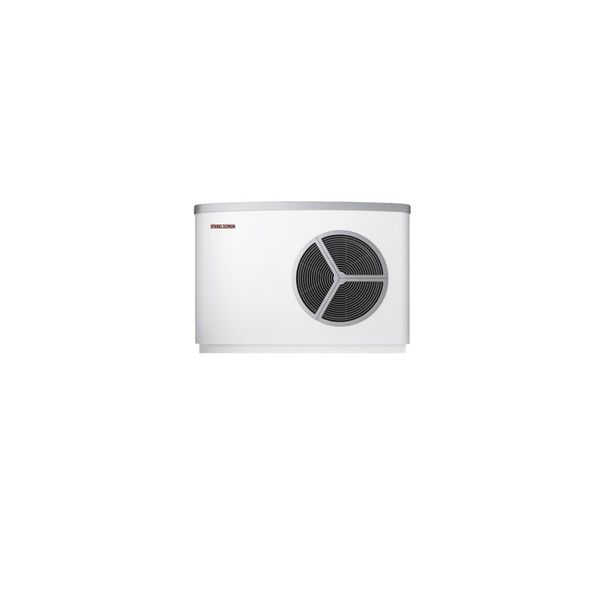

Air-water heat pump, WPL-A 07 HK 230 Premium
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
11 266,15 €
EAN: 4017212001233
MPN: 200123
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Air-water heat pump, WPL-A 07 HK 230 Premium |
| Brand | STIEBEL ELTRON |
| Categories |
Boilers and heaters
|
| Country of origin | DE |
| Harmonized System Code | 8418 6100 00 |
| Width | 1270 mm |
| Height | 900 mm |
| Depth | 593 mm |
| Weight | 160 kg |
| Number of phases | 1 |
| Type of regulation | Weather-dependent control |
| Cascadable | Yes |
| Remote operation | Yes |
| Frequency | 50 Hz |
| Degree of protection (IP) | Other |
| Connection voltage | 230 V |
| Max. heating water supply temperature | 75 °C |
| Air volume | 1000-2250 m³/h |
| Sound level (in operation) | 48 dB(A) |
| Data transfer via USB | Yes |
| Suitable for additional heating central heating | Yes |
| Regulation for buffer tank control | Yes |
| External controller required | Yes |
| Data transfer via bus connection | Yes |
| Type of pump (system pump) | Standard |
| Type voltage pump (system pump) | AC |
| Speed control pump (system pump) | None |
| Type of speed control (system pump) | Other |
| Sofstarter built-in | Yes |
| Limitation max. electric power consumption | 24 A |
| Suitable for active cooling | Yes |
| Cooling performance at 35/18 °C according to EN 14511 | 4.9-10.2 kW |
| Cooling performance at 35/7 °C according to EN 14511 | 3.3-7.3 kW |
| Hot tap water control integrated | Yes |
| Capacity profile | S |
| SEER low temperature application (35 °C) at average conditions | 193 % |
| SEER low temperature application (35 °C) at colder conditions | 151 % |
| SEER low temperature application (35 °C) at warmer conditions | 231 % |
| SEER middle temperature application (55 °C) at average conditions | 153 % |
| SEER middle temperature application (55 °C) at colder conditions | 128 % |
| SEER middle temperature application (55 °C) at warmer conditions | 163 % |
| Energy efficiency class room heating | A |
| Energy efficiency class water heating | A |
| COPd at Tj = +7 °C | 5.2 |
| Swimming pool controls | Yes |
| Nominal diameter central heating | 28 mm |
| Suitable for hot tap water | Yes |
| Room temperature control | Yes |
| Suitable for swimming pool water heating | Yes |
| Device emplacement | Outdoor positioning |
| Type of refrigerant | R454c |
| Sound performance level according to EN 12102 at 0/35 °C | 48 dB |
| Nominal volume flow rate output system | 0.2 l/s |
| Max. operating pressure output system | 3 bar |
| Outer pipe diameter connection output system | 28 mm |
| Heating capacity at 7/35 °C according to EN 14511 | 3.3 kW |
| COP at 7/35 °C according to EN 14511 | 5.4 |
| Air temperature | -25-40 °C |
| Data transfer via internet | Yes |
| Kind of optimization | Other |
| Modulating compressor | Yes |
Packing details
| Packing level 1 | 4017212001233, 4017212001233 |
Downloads
Product data sheet for energy label
Deep link REACH
Others
Mounting instruction
Product data sheet
Dimensioned drawing
Videos
Description
STIEBEL ELTRON Lucht-water-warmtepomp WPL-A 07 HK 230 Premium De vermogensgeregelde lucht-water-warmtepomp met invertertechnologie wordt als compacte monobloc-uitvoering buiten opgesteld. Deze levert het gewenste verwarmingsvermogen, waarborgt de warmwatervoorziening en kan door omkering van het circuit worden gebruikt om te koelen. Voor de verwarmingsmodus en de warmwaterbereiding staat een aanvoertemperatuur tot 75 graden Celsius ter beschikking. De bescherming tegen legionella is gewaarborgd. Bestaande gebouwen kunnen ook via radiatoren worden verwarmd, omdat zelfs bij vorst nog een aanvoertemperatuur van 55 graden Celsius wordt bereikt. COMFORTEIGENSCHAPPEN: de zeer stille werking wordt mogelijk gemaakt door het ingekapselde koelcircuit, de ontkoppelde compressor, de modulerende ventilator en de grote lamellenafstand van de verdamper. Ook in de winter zijn hoge drinkwatertemperaturen verzekerd.
