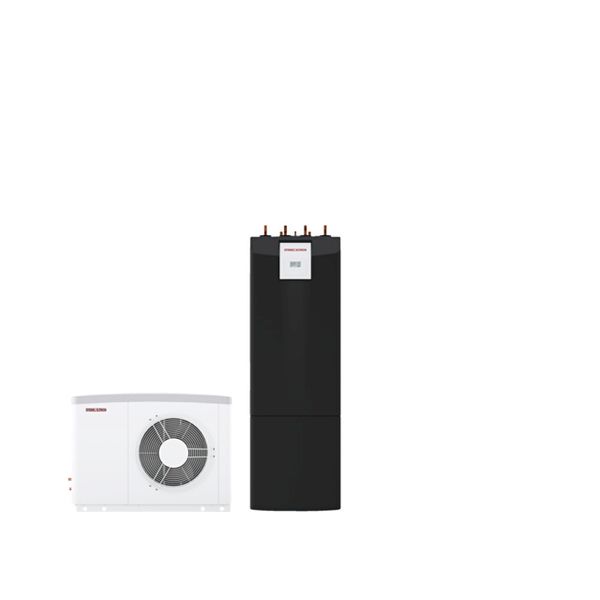

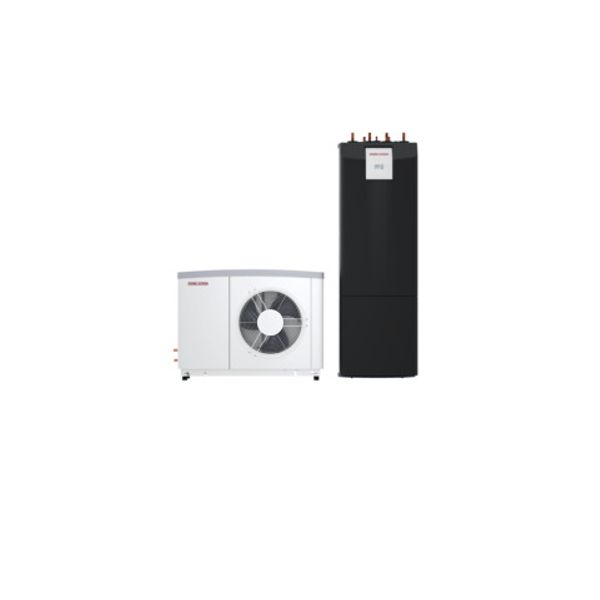

Air-water heat pump, WPL 17 ACS classic compact plus set 1.1
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | Air-water heat pump, WPL 17 ACS classic compact plus set 1.1 |
| Brand | STIEBEL ELTRON |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8418 6100 00 |
| ETIM | EC012034 |
| Type of regulation | Weather-dependent control |
| Degree of protection (IP) | Other |
| Connection voltage | 230 V |
| Max. heating water supply temperature | 60 °C |
| COPd at Tj = +7 °C | 4.6 |
| Heating capacity at 7/35 °C according to EN 14511 | 4.9 kW |
| COP at 7/35 °C according to EN 14511 | 4.8 |
Packing details
| Packing level 1 | 4017212042649, 4017212042649 |
Other Technical data
| Width | 1152 mm |
| Height | 812 mm |
| Depth | 524 mm |
| Weight | 91 kg |
| Number of phases | 1 |
| Remote operation | Yes |
| Frequency | Other |
| Air volume | 1570-2170 m³/h |
| Sound level (in operation) | 57 dB(A) |
| Data transfer via USB | Yes |
| Suitable for additional heating central heating | Yes |
| External controller required | Yes |
| Data transfer via bus connection | Yes |
| Type of pump (system pump) | Standard |
| Type voltage pump (system pump) | AC |
| Speed control pump (system pump) | None |
| Type of speed control (system pump) | Other |
| Sofstarter built-in | Yes |
| Limitation max. electric power consumption | 20.9 A |
| Suitable for active cooling | Yes |
| Cooling performance at 35/18 °C according to EN 14511 | 3-6 kW |
| Cooling performance at 35/7 °C according to EN 14511 | 3-6 kW |
| Hot tap water control integrated | Yes |
| Capacity profile | S |
| SEER low temperature application (35 °C) at average conditions | 177 % |
| SEER low temperature application (35 °C) at colder conditions | 147 % |
| SEER low temperature application (35 °C) at warmer conditions | 215 % |
| SEER middle temperature application (55 °C) at average conditions | 125 % |
| SEER middle temperature application (55 °C) at colder conditions | 103 % |
| SEER middle temperature application (55 °C) at warmer conditions | 153 % |
| Energy efficiency class room heating | A |
| Energy efficiency class water heating | A |
| Nominal diameter central heating | 22 mm |
| Suitable for hot tap water | Yes |
| Room temperature control | Yes |
| Device emplacement | Outdoor positioning |
| Type of refrigerant | R410a |
| Sound performance level according to EN 12102 at 0/35 °C | 57 dB |
| Max. operating pressure output system | 3 bar |
| Outer pipe diameter connection output system | 22 mm |
| Air temperature | -20-40 °C |
| Data transfer via internet | Yes |
| Kind of optimization | Other |
| Modulating compressor | Yes |
Downloads
Videos
Description
STIEBEL ELTRON Lucht-water-warmtepomp WPL 17 ACS classic compact plus set 1.1 De vermogensgeregelde monobloc-warmtepomp kan dankzij de volledig geïntegreerde binnenmodule ruimtebesparend en snel worden geïnstalleerd. Gebruik in zeer uiteenlopende verwarmingsverdeelsystemen is mogelijk, omdat de warmtepomp via een geïntegreerd buffervat van het verwarmingsverdeelsysteem is ontkoppeld. In de binnenmodule aanvullend geïntegreerde componenten: drinkwaterboiler, boilerlaadpomp, circulatiepomp, 3/2-weg omschakelklep, veiligheidsventiel, elektrische nood-/bijverwarming en de warmtepompmanager waarmee de installatie wordt geregeld.
