Air-term. rod D 40/16/10mm Al L 5000mm w. hinged tripod St/tZn -KIT-

Order only

Price (excl. VAT):

628,51 €

This price is valid until 24.12.25

EAN: 4013364094420

MPN: 105500

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Air-term. rod D 40/16/10mm Al L 5000mm w. hinged tripod St/tZn -KIT-
Brand	Dehn
Categories	Lightning Protection Components
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Model	Interception rod
Surface protection	Untreated
Connection	Round conductor
Length	5000 mm
Material	Aluminium
Diameter	10-40 mm

Packing details

Packing level 1

4013364094420, 4013364094420

Downloads

Product data sheet Dimensioned drawing

Description

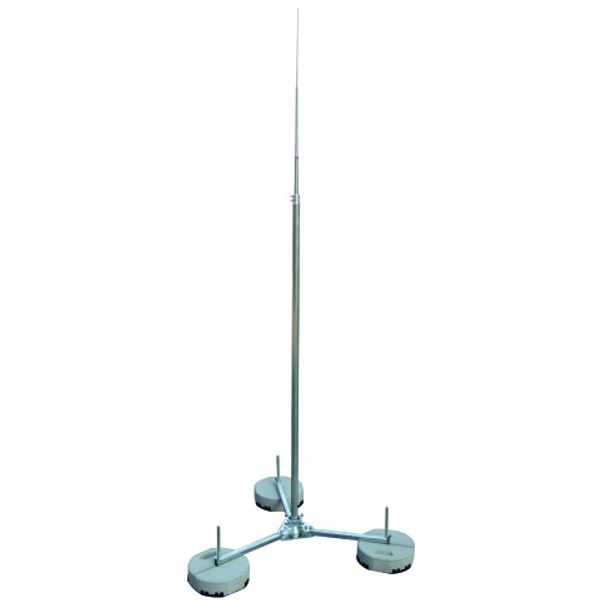

Self-supporting air-termination rod with hinged tripod, tested according to EN 62561-(1+2), for protecting larger roof-mounted structures, adjustable to a roof inclination up to max. 10°. The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 165 km/h. Height of 5000 mm, including connection clamp for round conductors 6-10 mm.
