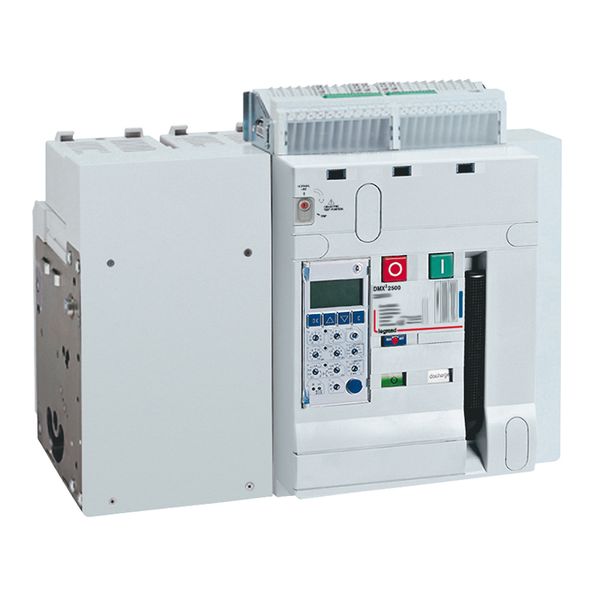

Air circuit breaker DMX³ 4000 lcu 100 kA - fixed version - 4P - 4000 A
Order only
Price (excl. VAT):
6 207,29 €
per pcs
EAN: 3245060286781
MPN: 028678
Package: 1
Pallet: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Air circuit breaker DMX³ 4000 lcu 100 kA - fixed version - 4P - 4000 A |
| Brand | Legrand |
| Categories |
Power Circuit Breakers
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 2090 00 |
| Rated permanent current Iu | 4000 A |
| Number of poles | 4 |
| Rated voltage | 230-690 V |
| Degree of protection (IP) | IP30 |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 100 kA |
| Integrated earth fault protection | Yes |
| Device construction | Built-in device fixed built-in technique |
Packing details
| Packing level 1 | 3245060286781, 3245060286781, 3245060286781 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 4 |
| With integrated under voltage release | Yes |
| Overload release current setting | 1600-4000 A |
| Number of auxiliary contacts as change-over contact | 4 |
| Position of connection for main current circuit | Back side |
| Motor drive integrated | Yes |
| Type of electrical connection of main circuit | Other |
| Type of control element | Push button |
| Adjustment range short-term delayed short-circuit release | 2400-40000 A |
| Adjustment range undelayed short-circuit release | 8000-85000 A |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| DIN rail (top hat rail) mounting optional | No |
| Complete device with protection unit | Yes |
