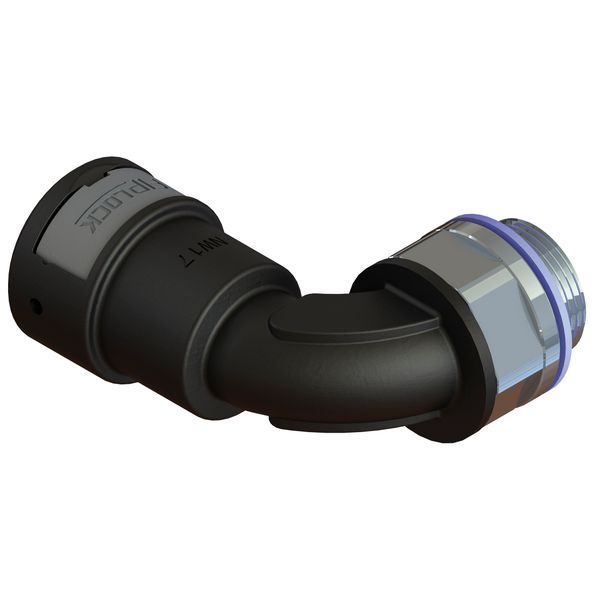

AEPA-29M32SB-13 zwart Wartel 90° bocht met. M-schr.dr draaib L image 1
FRÄNKISCHE

AEPA-29M32SB-13 zwart Wartel 90° bocht met. M-schr.dr draaib L

Order only
Price (excl. VAT):
Price by request
This price is valid while stock lasts
EAN: 4049504274391
MPN: 4890732000
Package: 1
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name AEPA-29M32SB-13 zwart Wartel 90° bocht met. M-schr.dr draaib L
Brand FRÄNKISCHE
Categories Cable Hoses
Country of origin* CH
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 3917 4000 00
Material Polyamide (PA)
Nominal diameter 29 mm
Nominal size in inch Other
Degree of protection (IP) IP66/IP67/IP68/IP69

Packing details

Packing level 1 4049504274391

Other Technical data

Colour Black
Model 90°-Bend
Type of connection Thread
Thread length 13 mm
Total length 102.9 mm
Construction type External thread
Operating temperature -50-120 °C
Revolving thread Yes
Thread type Metric
Lowest inner diameter hose 29 mm
Total height 48.2 mm
Approved in combination with protective conduit UR Yes
Approved in combination with protective conduit CSA Yes
Approved in combination with protective conduit Lloyd's Register No
Max. outer diameter hose 34.5 mm
Thread material Brass
Transparent No
Thread connection size M32 x 1.5
Approved in combination with protective conduit according to DIN EN 61386-23 No
Thread per inch 16.93
Material sealing Thermoplastic elastomer (TPE)
Approved in combination with protective conduit VdTÜV/GGVSEB No

Downloads

Product data sheet Dimensioned drawing Mounting instruction Declaration RoHS Construction Products Regulation Declaration DOC CE (Declaration of conformity CE)

Description

FIPLOCK®ONE wartel met bocht 90° AEPA-MML-S met lange metrische, draaibare metalen schroefdraad, van speciaal gemodificeerd polyamide 6, halogeenvrij, zelfdovend, uv-bestendig en voldoet aan de beschermklassen IP66, IP67, IP68 en IP69. Het 360°-vergrendelingssysteem kan met behulp van een gangbare sleufschroevendraaier eenvoudig worden geopend.
