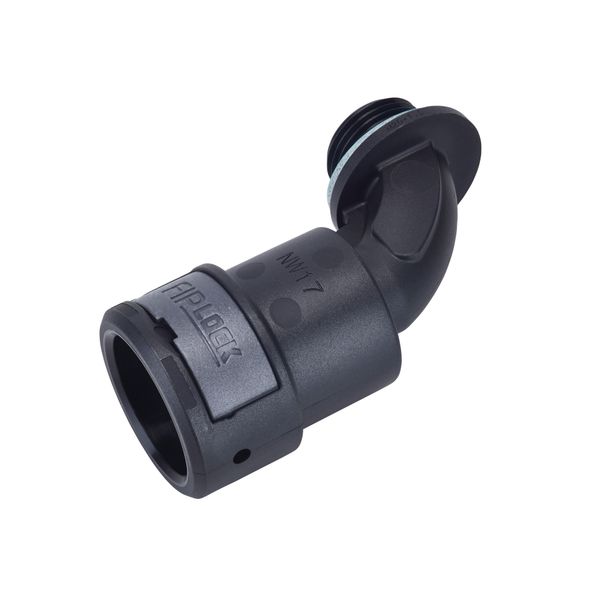

AEPA-29M32PB zwart Bocht 90° kunststof schroefdr. metrisch
Order only
Price (excl. VAT):
Price by request
EAN: 4049504219804
MPN: 4890713000
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | AEPA-29M32PB zwart Bocht 90° kunststof schroefdr. metrisch |
| Brand | FRÄNKISCHE |
| Categories |
Cable Hoses
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 3917 4000 00 |
| Material | Polyamide (PA) |
| Nominal diameter | 29 mm |
| Nominal size in inch | Other |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Packing details
| Packing level 1 | 4049504219804 |
Other Technical data
| Colour | Black |
| Model | 90°-Bend |
| Type of connection | Thread |
| Thread length | 15 mm |
| Total length | 99.4 mm |
| Construction type | External thread |
| Operating temperature | -50-120 °C |
| Revolving thread | No |
| Thread type | Metric |
| Lowest inner diameter hose | 29 mm |
| Total height | 72.1 mm |
| Approved in combination with protective conduit UR | Yes |
| Approved in combination with protective conduit CSA | Yes |
| Approved in combination with protective conduit Lloyd's Register | No |
| Max. outer diameter hose | 34.7 mm |
| Thread material | Polyamide (PA) |
| Transparent | No |
| Thread connection size | M32 x 1.5 |
| Approved in combination with protective conduit according to DIN EN 61386-23 | No |
| Thread per inch | 16.93 |
| Material sealing | Thermoplastic elastomer (TPE) |
| Approved in combination with protective conduit VdTÜV/GGVSEB | No |
Downloads
Product data sheet
Mounting instruction
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
Dimensioned drawing
Construction Products Regulation
Description
FIPLOCK®ONE wartel met bocht 90°AEPA-M met metrische kunststof schroefdraad, van speciaal gemodificeerd polyamide 6, halogeenvrij, zelfdovend, uv-bestendig en voldoet aan de beschermklassen IP66, IP67, IP68 en IP69. Het 360°-vergrendelingssysteem kan met behulp van een gangbare sleufschroevendraaier eenvoudig worden geopend.
