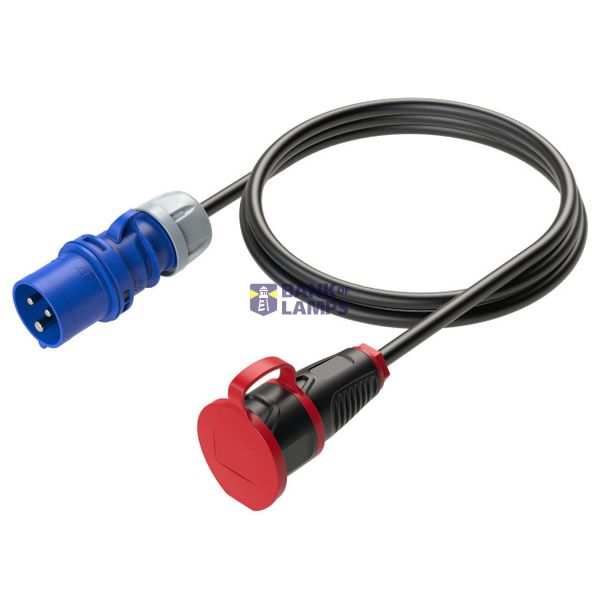

Adapterleitung 0.8m 3G1.5H07 VGK-16/3

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Adapterleitung 0.8m 3G1.5H07 VGK-16/3
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399084218

Other Technical data

Colour	Other
Number of socket outlets with protective contact (type F)	1
Cable length	0.8 m
Protection	None
Housing material	Other
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A
Number of poles mains connection	3

Downloads

Product data sheet

Description

Adapterleitung 0.8m 3G1.5H07 VGK-16/3
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass nickel plated
Entry: 0,8m cable (H07RN-F 3G1,5) with plug 16A 3p 6h
Outlet: safety connector (Austrian/German System) with cap 16A 250V
IP protection class: IP44
