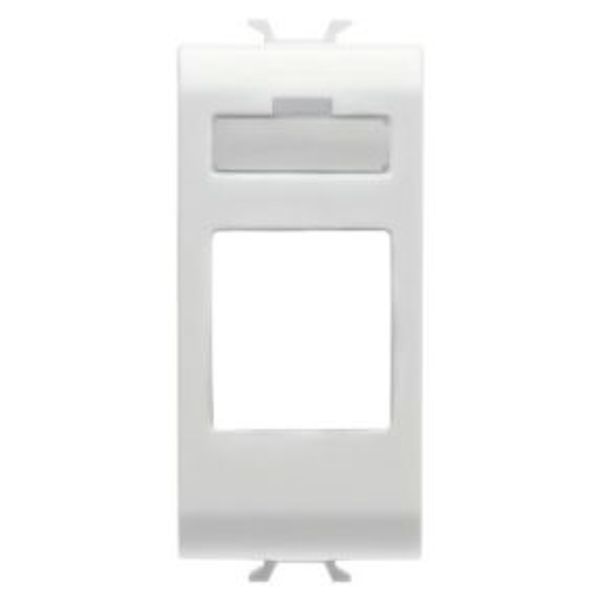

Adapter For Housing Data Connectors Type Amp/keystone Jack, 1 Module, Glossy White, Antibacterial, Chorusmart
Order only
EAN: 8034035071584
MPN: GW10431AB
Package: 1
Box: 48
Pallet: 4608
Price (excl. VAT)
3,05 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | ADAPTER FOR HOUSING DATA CONNECTORS - TYPE AMP/KEYSTONE JACK - 1 MODULE - GLOSSY WHITE - ANTIBACTERIAL - CHORUSMART |
| Brand | GEWISS |
| Categories |
Ethernet Wall Plates
|
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000018 |
| Mounting method | Module frame |
| Assembly arrangement | Modular device for domestic switching devices |
| Utilization | For data connection housing |
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Shielded buses | No |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 8034035071584 |
| Packing level 2 | 8034035454110 |
| Packing level 3 | 8034035071584 |
Other Technical data
| Colour | White |
| Halogen free | No |
| With hinged lid | No |
| Surface protection | Untreated |
| With strain relief | No |
| Material quality | Thermoplastic |
| Imprintable label | With indication plate |
| Material | Plastic |
| Type of fastening | Engage (snap) |
| Shielded housing | No |
| With lighting | No |
| Luster terminal | No |
| RAL-number (similar) | 9003 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Glossy |
| Device width | 22 mm |
| Device height | 44 mm |
| Device depth | 45 mm |
| Number of modules (module system) | 1 |
| Min. depth of built-in installation box | 47 mm |
| Anti-bacterial treatment | Yes |
Downloads
Description
CHORUSMART - Domestic range Antibacterial range - A range of ChoruSmart modular devices and plates made in antibacterial technopolymer, white colour and glossy finish, suitable for hospitals, structures for aged people, schools and wherever cleanness and hygiene are an essential component. The effectiveness of the antibacterial treatment, based on the addition of silver ions, is able to reduce the bacterial growth by 99% within 24 hours and has been tested according to the ISO 22196 (MRSA and Escherichia coli strains) through certified laboratories.
