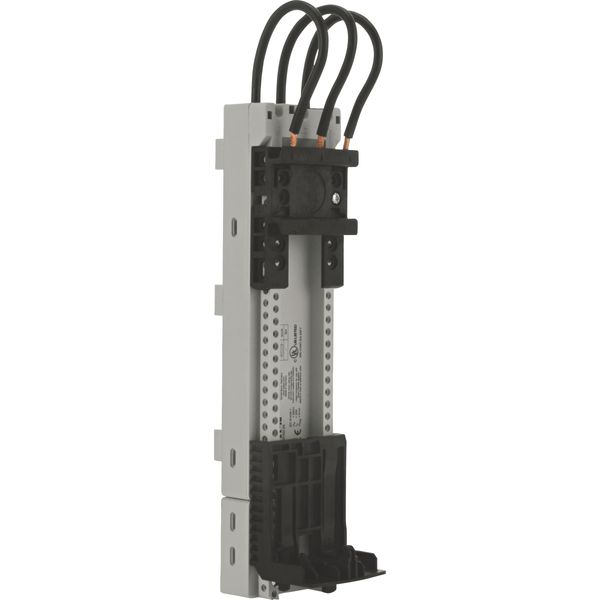

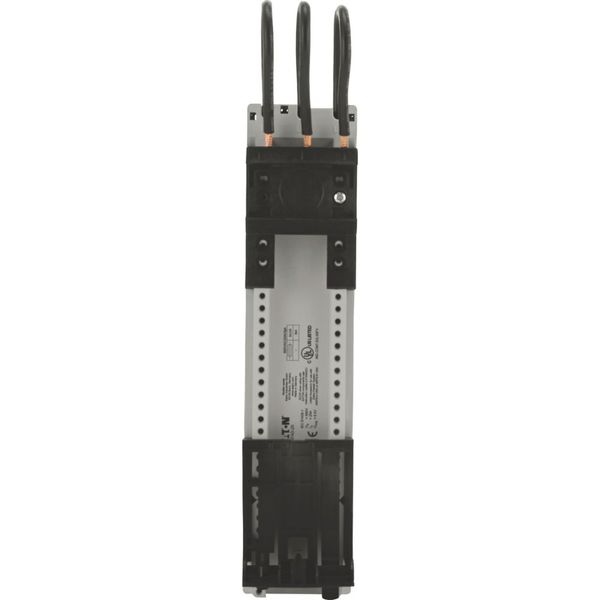

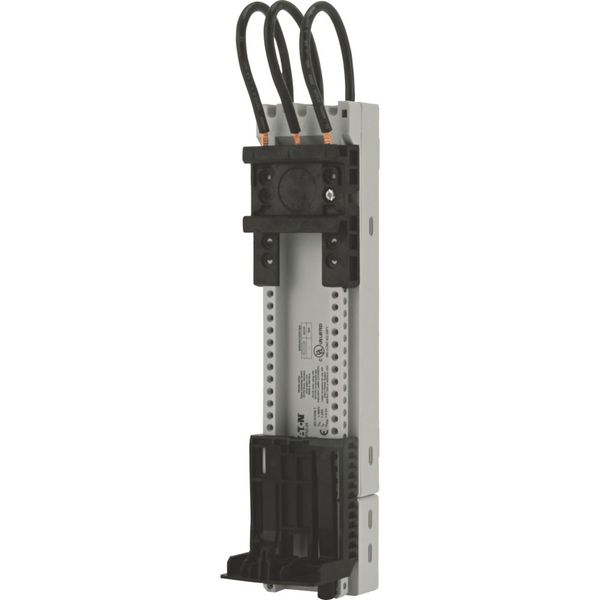

MSFAD-25-PI Adapter, 25 A, Pole 3, For use with PKZM0€¦-PI, PKE32€¦-PI
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
15,22 €
EAN: 4015081978786
MPN: 199472
Package: 1
Box: 4
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MSFAD-25-PI Adapter, 25 A, Pole 3, For use with PKZM0€¦-PI, PKE32€¦-PI |
| Brand | EATON |
| Categories |
Busbar Systems and Accessories
|
| Country of origin | DE |
| Harmonized System Code | 8536 9095 00 |
| Mounting rail armament | 1 mounting rail |
| Type of electric connection | 3 conductors AWG 12 |
| Rated current In | 25 A |
Packing details
| Packing level 1 | 4015081978786 |
| Packing level 2 | 4015081979035 |
Other Technical data
| Busbar distance | 60 mm |
| Max. busbar thickness | 2 mm |
| Width of the adapter | 45 mm |
| Rail width | 24 mm |
| Min. busbar thickness | 2 mm |
Description
Adapter, Product range: Accessories, Busbar adapters, Approved to UL 508, For use with: MSC-D, 25 A, Rated operational voltage: Ue= 690 V, Rated operational current: Ie= 25 A, Terminal capacity: AWG 12, (4 mm²), Adapter width: 45 mm, Adapter length: 160 mm, DIN rail: 1
