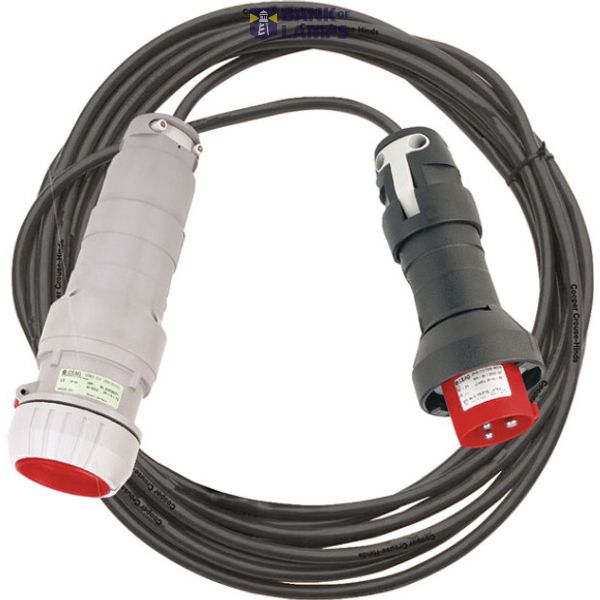

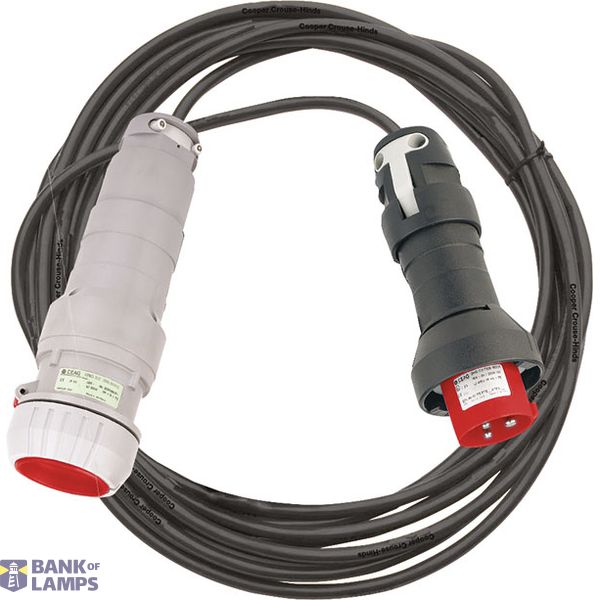

Adapt. Cable 2m 2,5mmÂ,², Ind 16A 5-3pole
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Adapt. Cable 2m 2,5mmÂ,², Ind 16A 5-3pole |
| Brand | EATON |
| ETIM | EC001576 |
| Nominal current | 16 A |
| Nominal cross section conductor | 2.5 mm² |
| Connection 1 | CEE plug (IEC 60309) |
| Connection 2 | CEE coupling (IEC 60309) |
| Frequency | 50-60 Hz |
| Length | 2 m |
| Colour outer sheath | Black |
| Material outer sheath | Rubber |
| Number of cores | 3 |
| Spiralized cable | No |
| Temperature resistance | -20-40 °C |
| Outer diameter approx. | 12.5 mm |
| Nominal voltage | 380-415 V |
| Degree of protection (IP) | Other |
| With cord switch | No |
| With protective conductor | Yes |
| Connector system system-oriented | Yes |
| Oil resistant according to IEC 60811-404 | Yes |
| Reaction-to-fire according to EN 13501-6: Class | None |
| Reaction-to-fire according to EN 13501-6: Smoke production | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | None |
| Reaction-to-fire according to EN 13501-6: Acidity | None |
Packing details
| Packing level 1 | 4250959922984 |
Description
Adaptor Ex-plug-Industrial connector16 A adaptor for 5-pole / 3-pole connection, 380 - 415 V / 200 - 250 V , Ex-plug: 5-pol /industrial applic. connector 3-pol., 2 m x 3G 2.5 mm²
