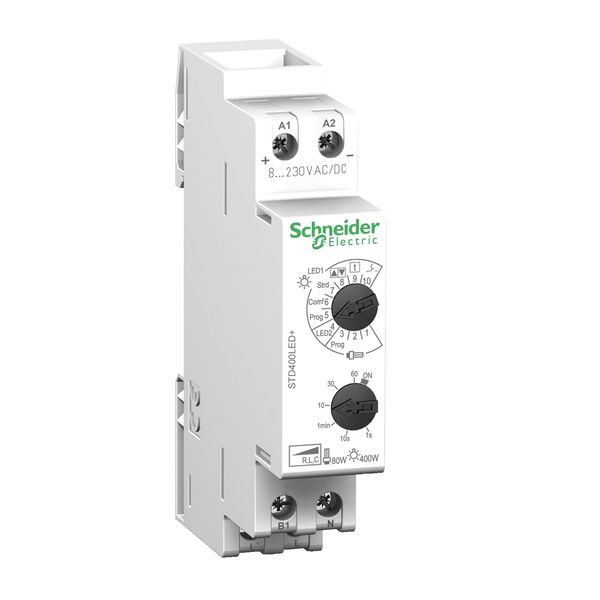

Acti9 - STD400LED+ DIN universal dimmer
In stock: No
Vendor stock: Yes
Minimal order quantity: 1
Price (excl. VAT):
131,68 €
EAN: 3606480769252
MPN: CCTDD20017
Package: 1
Box: 86
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Acti9 - STD400LED+ DIN universal dimmer |
| Brand | Schneider Electric |
| Categories |
PLC Units & I/O Modules
|
| Harmonized System Code | 8537 1098 00 |
| Mounting method | DIN rail |
| Function | Dimmer |
| Rated current | 2 A |
| Rated frequency | 50 Hz |
| Width in number of modular spacings | 1 |
| Control voltage 1 | 230 V |
| Type of control voltage 1 | AC |
| Rated voltage | 230 V |
| Max. switching current (cos phi = 0.6) | 0 A |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 3606480769252 |
| Packing level 2 | 3606480769250 |
Other Technical data
| Width | 18 mm |
| Height | 85 mm |
| Depth | 60 mm |
| Astro program | No |
| Number of channels | 1 |
| Weekly program | No |
| Presence simulation | No |
| Number of dimmer functions | 4 |
| Dim capacity per channel | 400 W |
| Group switch | No |
| Panic function | No |
| Current surge function, number of channels | 0 |
| Central function OUT | Yes |
| Stair light and forewarn | No |
| Castor function, number of channels | 0 |
| Number of universal dim channels | 1 |
| Roller shutter-/sun protection control, number of channels | 0 |
| Module expansion up to max. number of channels | 0 |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Others
Declaration DOC CE (Declaration of conformity CE)
Instructions for use
Description
