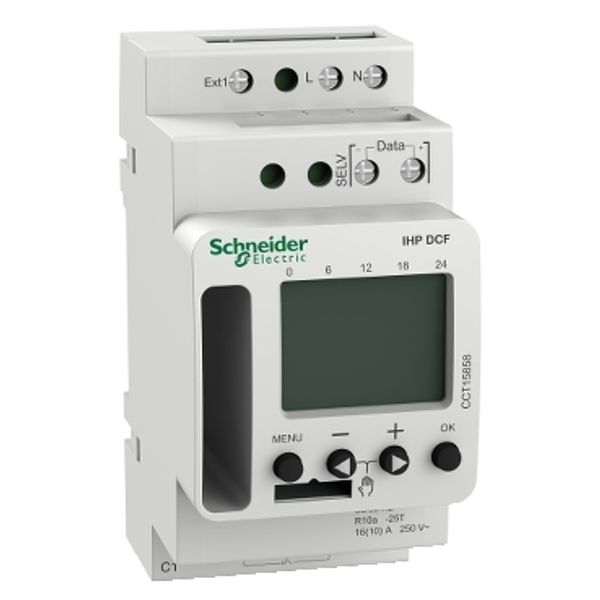

Digital Time Switch for Distribution Board IHP Acti9, IHP DCF (24h/7d) SMART Programmable Time Switch
Order only
EAN: 3606489524531
MPN: CCT15858
Package: 1
Box: 40
Price (excl. VAT)
157,38 €
per unit
MOQ: 1
EDT to our warehouse: By request
Price valid until 31.12.27 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | Time Switch Acti9 iHP DCF Smart 24h 7d |
| Brand | Schneider Electric |
| Categories |
Marking Plates & Enclosures
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9107 0000 00 |
| ETIM | EC002305 |
| Mounting method | DIN rail |
| Number of contacts | 0 |
| Number of channels | 1 |
| Radio-controlled | Yes |
| GPS (global positioning system) | No |
| 60 min program | Yes |
| Cycle program | Yes |
| Mains synchronous | Yes |
| Quartz controlled | Yes |
| Automatic switching summer-/winter time | Yes |
| Voltage type of supply voltage | AC |
| External programming | Yes |
| Radio-controlled (DCF77) | Yes |
| Supply voltage | 230 V |
| Frequency supply voltage | 50-60 Hz |
| Nominal switching current at 250 V AC | 16 A |
| Degree of protection (IP) | IP20 |
| Max. switching power LED | 0 W |
Packing details
| Packing level 1 | 3606489524531 |
| Packing level 2 | 3606489524538 |
Other Technical data
| Width | 45 mm |
| Height | 92.6 mm |
| Depth | 67 mm |
| Number of memory locations | 84 |
| Astro program | No |
| Weekly program | Yes |
| Annual program | No |
| Width in number of modular spacings | 2.5 |
| 24 h program | Yes |
| Holiday program | Yes |
| Random program | Yes |
| Impulse program | Yes |
| Suitable for manual operation | Yes |
| Switching preselection | Yes |
| Potential free switch contact | Yes |
| Hour meter | Yes |
| Autonomy in years | 10 |
| Autonomy in hours | 87600 |
| Shortest switching time channel 1 | 0.017 min |
| Shortest switching time channel 2 | 0 min |
| Text guidance in display | Yes |
| Accuracy per day | 0.25 s |
| External pushbutton input | Yes |
| With memory card | No |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Others
Instructions for use
Description
IHP+ DCF SMART digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible 1 channel output Programming could be done also with memory key and PC software Exact time is received by DCF radio signal via an external DCF antenna
