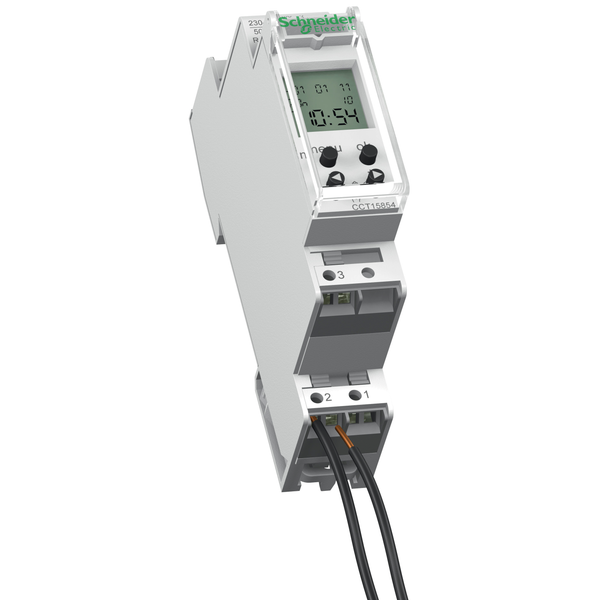

Acti9 - IHP - 1C digital time switch - 24 hours + 7 days
In stock: Yes
Vendor stock: Yes
Minimal order quantity: 1
Price (excl. VAT):
130,37 €
EAN: 3606480492358
MPN: CCT15854
Package: 1
Box: 86
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Acti9 - IHP - 1C digital time switch - 24 hours + 7 days |
| Brand | Schneider Electric |
| Categories |
Push Buttons and Control
|
| Country of origin | CN |
| Harmonized System Code | 9107 0000 00 |
| Mounting method | DIN rail |
| Number of contacts | 0 |
| Number of channels | 1 |
| Radio-controlled | No |
| GPS (global positioning system) | No |
| 60 min program | No |
| Cycle program | No |
| Mains synchronous | Yes |
| Quartz controlled | No |
| Automatic switching summer-/winter time | Yes |
| Voltage type of supply voltage | AC |
| External programming | Yes |
| Radio-controlled (DCF77) | No |
| Supply voltage | 196-253 V |
| Frequency supply voltage | 50-60 Hz |
| Nominal switching current at 250 V AC | 16 A |
| Degree of protection (IP) | IP20 |
| Max. switching power LED | 0 W |
Packing details
| Packing level 1 | 3606480492358 |
| Packing level 2 | 3606480492356 |
Other Technical data
| Width | 18 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Number of memory locations | 0 |
| Astro program | No |
| Weekly program | Yes |
| Annual program | No |
| Width in number of modular spacings | 1 |
| 24 h program | Yes |
| Holiday program | Yes |
| Random program | No |
| Impulse program | No |
| Suitable for manual operation | Yes |
| Switching preselection | No |
| Potential free switch contact | Yes |
| Hour meter | No |
| Autonomy in years | 10 |
| Autonomy in hours | 52560 |
| Shortest switching time channel 1 | 1 min |
| Shortest switching time channel 2 | 0 min |
| Text guidance in display | Yes |
| Accuracy per day | 0.5 s |
| External pushbutton input | Yes |
| With memory card | No |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Others
Declaration DOC CE (Declaration of conformity CE)
Instructions for use
Description
IHP digital time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 1 channel output
