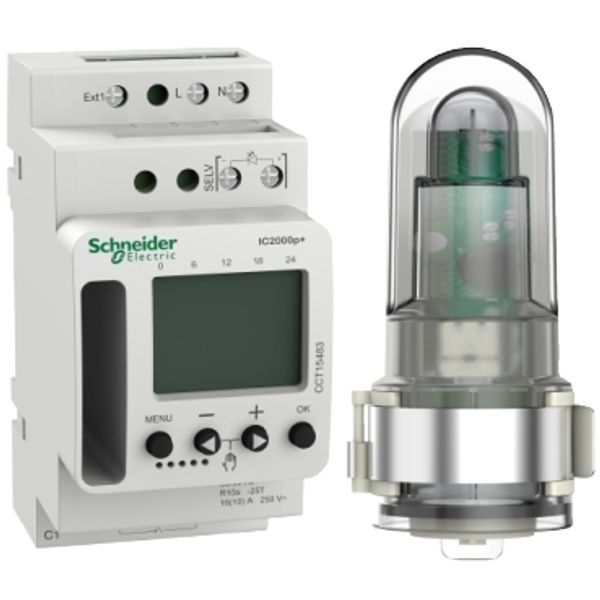

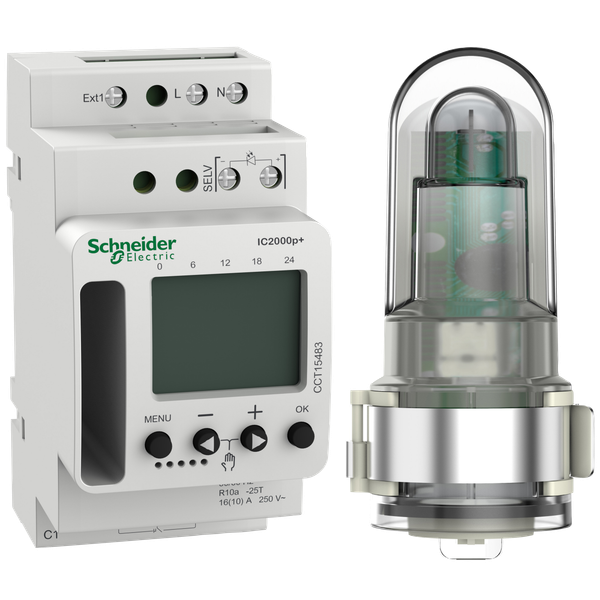

Acti9 IC2000p+ (2 - 2000 lux) programmable twilight switch

In vendor's stock

Price (excl. VAT):

169,43 €

This price is valid until 31.12.25

EAN: 3606489524586

MPN: CCT15483

Package: 1

Box: 22

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Acti9 IC2000p+ (2 - 2000 lux) programmable twilight switch
Brand	Schneider Electric
Categories	Assembly Accessories and Parts
Country of origin	DE
Harmonized System Code	8536 5080 00
Mounting method	DIN rail
Rated voltage	230 V
Width in number of modular spacings	2.5
Degree of protection (IP)	IP20
Adjustment range brightness value	2-2000 lx

Packing details

Packing level 1	3606489524586
Packing level 2	3606489524583

Other Technical data

Built-in depth	67 mm
Rated frequency	50-60 Hz
Rated voltage light sensor	0 V
Max. switching current (cos phi = 0.6)	10 A
Max. incandescent lamp load	2600 W
Max. conductor length light sensor	50 m
Max. load fluorescent lamp	2300 VA
Max. load fluorescent lamp (Duo circuit)	2300 VA
Max. load fluorescent lamp (parallel compensated)	730 VA
With programmable overnight shutoff	Yes
Degree of protection (IP) light sensor	IP55
Push button input	Yes
Rated switch current	16 A
Protection class light sensor	II
Mounting method light sensor	Wall surface mounted
Max. switching power LED	0 W

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Technical manual Others Instructions for use Declaration DOC CE (Declaration of conformity CE)

Description

IC2000p+ digital twilight switch Width of 45mm (5 modules of 9mm) To start and stop an electric load according to measured light level between 2 - 2.000 lux. Integrated time switch with swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible. Delivered with outdoor wall-mounted sensor 1 channel output User manual holder on product left side allows to reach document easily
