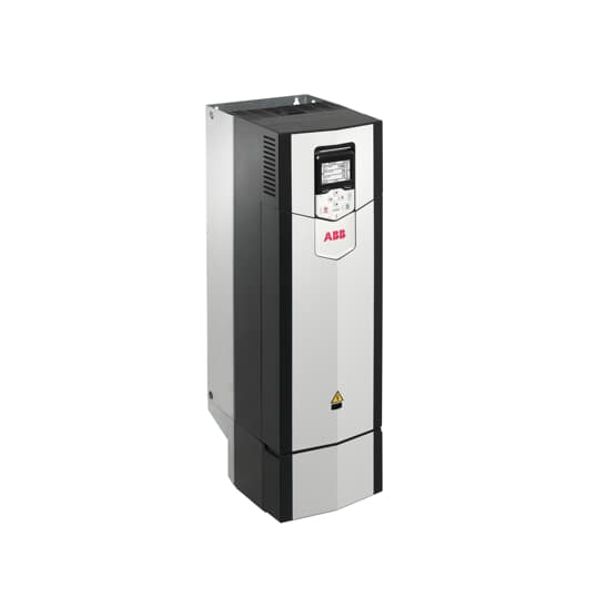

ACS880-01-035A-7+E200 PN:kW, IN:A
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
6 454,66 €
EAN: 6438177555599
MPN: 3AXD50000356294
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ACS880-01-035A-7+E200 PN:kW, IN:A |
| Brand | ABB |
| Categories |
Frequency converter =< 1 kV
|
| Country of origin | FI |
| Harmonized System Code | 8504 4088 00 |
| Mains voltage | 525-690 V |
| Mains frequency | 50/60 Hz |
| Number of phases input | 3 |
| Relative symmetric net voltage tolerance | 10 % |
| Relative symmetric net frequency tolerance | 5 % |
Packing details
| Packing level 1 | 6438177555599, 6438177555599 |
Other Technical data
| Width | 203 mm |
| Height | 732 mm |
| Depth | 274 mm |
| With control element | Yes |
| Number of digital inputs | 6 |
| Number of digital outputs | 5 |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 6 |
| With optical interface | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for CAN | Yes |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Degree of protection (IP) | IP21 |
| With PC connection | Yes |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| 4-quadrant operation possible | No |
| Number of interfaces PROFINET | 0 |
| Type of converter | U converter |
| Number of phases output | 3 |
| Integrated breaking resistance | No |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | No |
| Max. output frequency | 690 Hz |
| Max. output at linear load at rated output voltage | 30 kW |
| Max. output at quadratic load at rated output voltage | 30 kW |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | Yes |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFIsafe | Yes |
| Supporting protocol for SafetyBUS p | No |
| Max. output voltage | 690 V |
| Nominal output current I2N | 35 A |
| Supporting protocol for BACnet | No |
| Degree of protection (NEMA) | 1 |
Description
The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.
The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.
