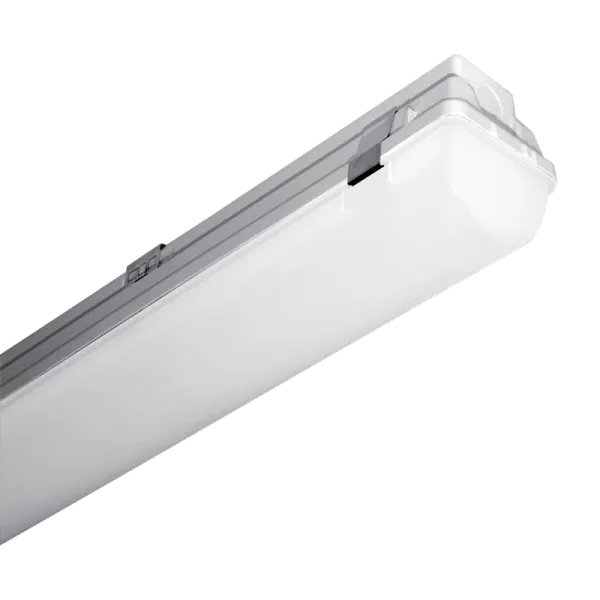

ACRO+ EQ158 S/EW 4000K HF
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
154,26 €
EAN: 5414833103916
MPN: 3103930
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ACRO+ EQ158 S/EW 4000K HF |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps |
| Country of origin | HU |
| Harmonized System Code | 9405 1140 00 |

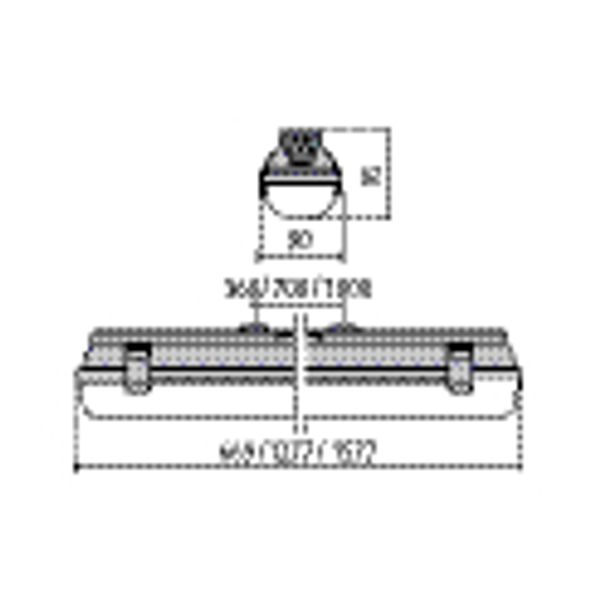

| Width | 90 mm |
| Colour housing | Grey |
| Colour rendering index CRI | 80-89 |
| Length | 1577 mm |
| Height/depth | 95 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220 V |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 33 W |
Packing details
| Packing level 1 | 5414833103916, 5414833103916 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | Yes |
| Suitable for lamp power | 33 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | Yes |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -15 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 18.7 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 56 |
| Max. number of luminaires per miniature circuit breaker B16 | 56 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 88.5 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 83.7 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 76.3 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Untreated |
| Power factor | 0.9 |
Downloads
Description
Waterdicht LED-armatuur, met afscherming, bestaande uit: Basis in grijs polyester versterkt met glasvezels. Afscherming van opaal PMMA voor een optimale lichtverspreiding en een grote uniformiteit. Siliconenpakking. Specificaties LED multichip 4000 K. Kapklemmen van Rvs. Beugel voor snel-montage aan het plafond (rvs). EXTREME versies zijn geschikt voor zeer zware omstandigheden, tot wel -30°C.
