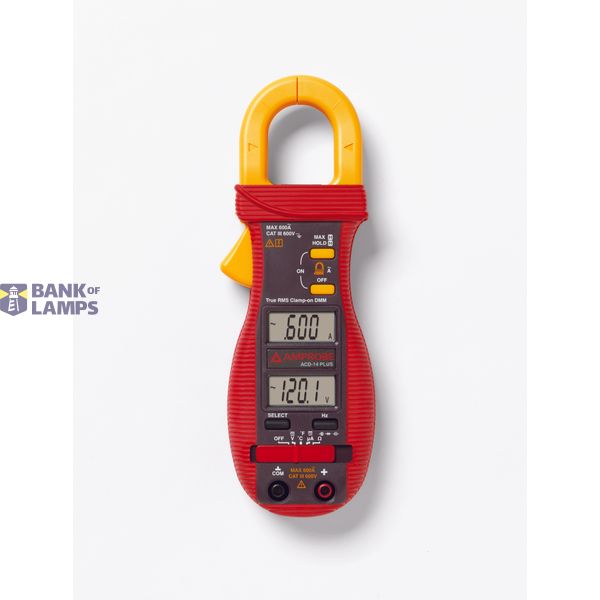

ACD-14 PLUS ACD-14 PLUS AC Clamp Meter, Dual Display, 600 A, Resistance, jaw 25 mm
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | ACD-14 PLUS ACD-14 PLUS AC Clamp Meter, Dual Display, 600 A, Resistance, jaw 25 mm |
| Brand | Beha-Amprobe |
| Country of origin* | TW |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9030 3200 00 |
| ETIM | EC000380 |
| Type of current | AC |
| Indication | Digital |
| Measuring range selection | Automatic |
| Current measuring range, AC | 0.01-600 A |
| Jaw opening | 25 mm |
| Measuring circuit category | CAT III |
| Degree of protection (IP) | IP2X |
| Max. voltage measuring circuit category | 600 V |
Packing details
| Packing level 1 | 0095969436083 |
Other Technical data
| Resistance measuring range | Yes |
| True RMS measurement | No |
| Continuity test | Yes |
| Interface | No |
| Capacitance measurement | Yes |
| Frequency measurement | Yes |
| Power measuring | No |
| Leakage current measuring | No |
| Measurement in cables with for- and back conductor | No |
| Version as adapter to connect to multi meter | No |
| Harmonics measurement | No |
| Voltage measurement, AC | Yes |
| Voltage measurement, DC | Yes |
| Analogue bar graph display | No |
| Multiple display | Yes |
| Temperature measurement | Yes |
| With display backlight | Yes |
Downloads
Description
ACD-14 PLUS,DUAL DISPLAY DIGITAL CLAMP-ON MULTIMETER
