KA4057NA14 Measurement and metering transformer board for EEG, Field width: 1, Rows: 0, 1350 mm x 250 mm x 160 mm, IP2XC
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
4 698,48 €
EAN: 4011617356196
MPN: 2CPX035619R9999
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KA4057NA14 Measurement and metering transformer board for EEG, Field width: 1, Rows: 0, 1350 mm x 250 mm x 160 mm, IP2XC |
| Brand | ABB |
| Categories |
Preassembled Distribution Units
|
| Harmonized System Code | 8537 1098 00 |
| Number of poles | 5 |
| Suitable for power circuit breaker | No |
| Rated operation current | 115 A |
| Equipped with switch disconnector | No |
Packing details
| Packing level 1 | 4011617356196 |
Other Technical data
| Width | 250 mm |
| Height | 1350 mm |
| Depth | 160 mm |
| With cover | Yes |
| Plastic cover plate | Yes |
| With auxiliary terminal | No |
| Number of switches | 1 |
| Suitable for switch disconnector | No |
| Suitable for no-voltage switch | No |
| Suitable for reverser | No |
| Equipped with power circuit-breaker | No |
| Equipped with no-voltage switch | No |
| Equipped with reverser | No |
Downloads
Description

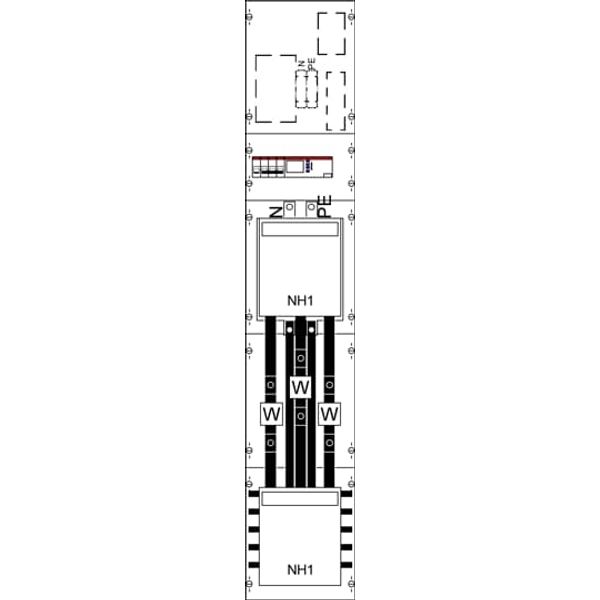

Wandlerfeld für EEG, Komplettfeld, Bemessungsstrom In 144 A, Netzsystem TN-S, -polig, Lastbereich: Trennstelle vor dem Wandler Sicherungslasttrenner NH1/250A, Wandlerbereich Wandlerauflage mit herausnehmbarer Wandlerlasche 170 x 30 x 5 mm, Ritz: EKS 60-03, EKS 70-04, EKSO 74, MBS: EASK 31.3, EASK 31.4, EASK 31.5, EASK 41.4, EASK 41.5 (Beistellung NB), Primärverdrahtung L1-L3 Cu-Schiene 30 x 5 und 25 x 5, PE+N Cu-Schiene 20 x 5 mm, Anschluss Netzseite auf Sammelschienen Cu 12 x 5 mm, PV-Seite am Schütz, PE an Reihenklemme 50 qmm, kpl. Verdrahtung Lastseite, Steuerung und Messfeld, Rasteinheit 9 RE, Bauhöhe 5, Feldbreite 1, Platzeinheiten 108, Abdeckungen aus Kunststoff, plombierbarer Schnellverschluss
