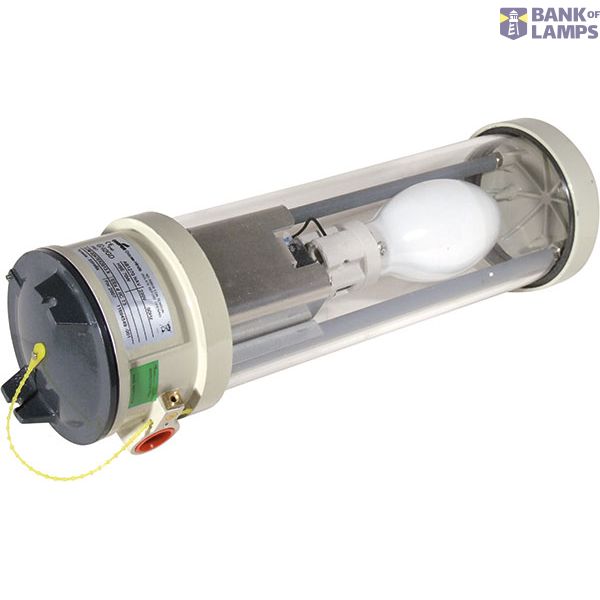

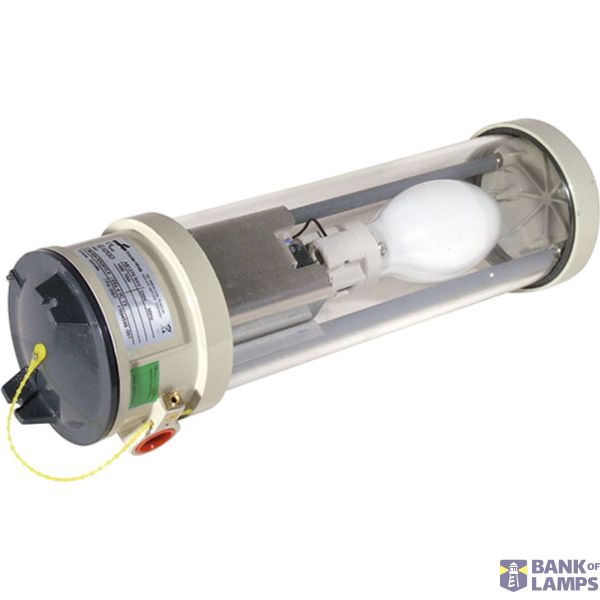

AB12 NAV70 ARCTIC 2XM25 230V50HZ O RE/L
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | AB12 NAV70 ARCTIC 2XM25 230V50HZ O RE/L |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 140 mm |
| Length | 530 mm |
| Height/depth | 144 mm |
| Lamp type | High pressure sodium-vapour lamp |
| Impact strength | IK10 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP67 |
| Beam angle | Wide beam 41-80° |
| Rated luminous flux according to IEC 62722-2-1 | 5.6 lm |
Packing details
| Packing level 1 | 4250959908308 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | E27 |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| Suitable for lamp power | 70 W |
| Type of control gear | Low-loss ballast compensated |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -50-40 °C |
| Light distributor | Reflector |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description
Ex-pendant light fittings for high pressure discharge lamps for Zone 1/21AB 12 NAV 70 Arctic IIC, -50 °C, 1 x M25 metal thread with threaded plug, 1 x M25 metal thread with dust cap
