AB05 E 60 A 1M20/1M20-PLUG
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | AB05 E 60 A 1M20/1M20-PLUG |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 230 mm |
| Length | 360 mm |
| Height/depth | 175 mm |
| Lamp type | Incandescent lamp |
| Impact strength | IK10 |
| Nominal voltage | 250 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Rated luminous flux according to IEC 62722-2-1 | 710 lm |
Packing details
| Packing level 1 | 4250217411625 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | E27 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| Suitable for lamp power | 1-60 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-55 °C |
| Light distributor | Reflector |
| Exchangeable control gear | No |
Description

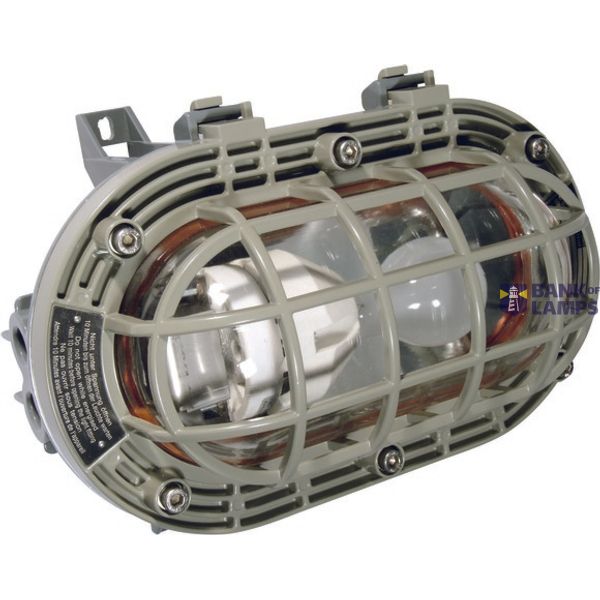

Ex-e bulkhead light fitting for Zone 1/21AB05 Ex-e, 1 x M20 plug, 1 x M20 metal thread with dust cap, 1 x M20
