AB05 D IIB LED 1M25X1,5/2000LM/22W
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | AB05 D IIB LED 1M25X1,5/2000LM/22W |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 230 mm |
| Length | 360 mm |
| Height/depth | 175 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Rated luminous flux according to IEC 62722-2-1 | 1.453 lm |
Packing details
| Packing level 1 | 4250217403347 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 4 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| Suitable for lamp power | 22 W |
| Type of control gear | LED operating device voltage-controlled |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -55-55 °C |
| Light distributor | Reflector |
| Exchangeable control gear | No |
Description

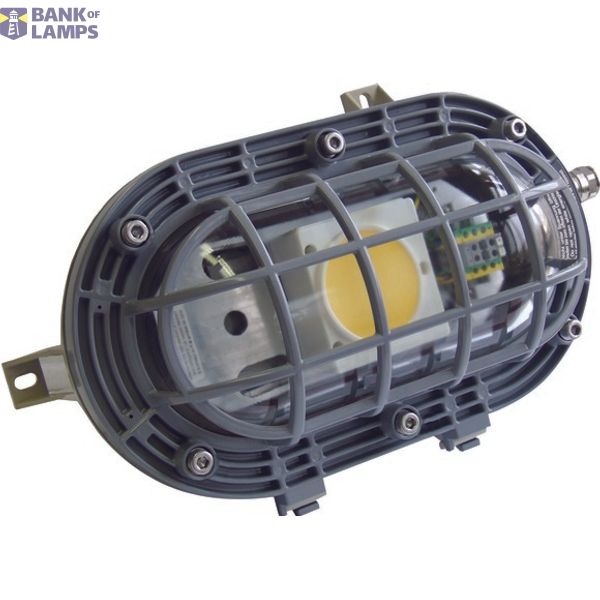

Ex-d bulkhead light fitting with LED for Zone 1/21AB05 Ex-d IIB, 1 x M25 metal thread with dust cap
