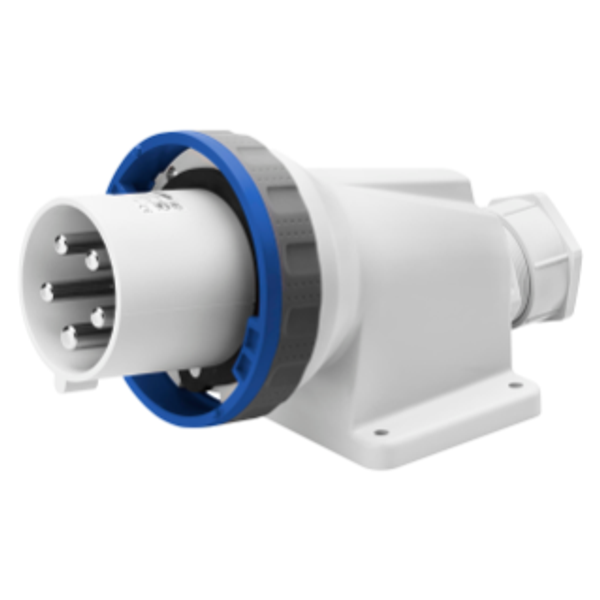

90° ANGLED SURFACE MOUNTING INLET - IP67 - 3P+E 125A 200-250V 50/60HZ - BLUE - 9H - MANTLE TERMINAL

Order only

Price (excl. VAT):

72,03 €

This price is valid until 24.12.25

EAN: 8011564010864

MPN: GW60458

Package: 1

Box: 2

Pallet: 36

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	90° ANGLED SURFACE MOUNTING INLET - IP67 - 3P+E 125A 200-250V 50/60HZ - BLUE - 9H - MANTLE TERMINAL
Brand	GEWISS
Categories	CEE Plugs
Harmonized System Code	8536 6990 00
Material	Plastic
Surface treatment contacts	Nickel-plated
IEC-amperage	125 A
Connection system	Screwed terminal
Contact material	Other
Degree of protection (IP)	IP67
Military model	No
Voltage according to EN 60309-2	200 - 250 V (50+60 Hz) blue

Packing details

Packing level 1	8011564010864
Packing level 2	8011564010864
Packing level 3	8011564010864

Other Technical data

RAL-number	7035
Construction type	Surface mounted plug
Number of poles	4
Rated frequency	50-60 Hz
Amperage according to UL/CSA (for UL-version)	0 A
Angle of plug	Right-angled
Phase inverter	No
Rated voltage	200-250 V
Clock hour position	9 h
Identification colour	Blue

Downloads

Product data sheet

Description

IEC 309 HP range Plugs and socket-outlets IEC 309 Standards - The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125A in two different versions – straight mobile and 10° flush-mounting – available in protected versions with IP44/IP54 degree of protection and watertight versions with IP degree of protection of up to IP66/IP67/IP68/IP69 (the first and only on the electro-technical scene to have this). The introduction of all the clock references for the earthing contact completes the range for specific applications and installations. The 16-32A versions require screw or quick spring wiring, while the 63-125 A versions employ branching terminal connection technology.
