7141055BT AQL 03A/1/BT/LED
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 7141055BT AQL 03A/1/BT/LED |
| Brand | ABB |
| ETIM | EC001957 |
| Width | 170 mm |
| Length | 381 mm |
| Height/depth | 75 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 5600 K |
Packing details
| Packing level 1 | 8713812774961 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | II |
| Function | Escape route lighting |
| Conductor cross section | 2.5 mm² |
| Connection type | Screw connection |
| Colour housing | Aluminium |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | Yes |
| Number of poles | 8 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Material cover | Plastic, transparent |
| Battery quality | NiCd |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Safety module for monitoring (central feeded system) |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Luminous flux in standby mode | 119 lm |
| Rated ambient temperature according to IEC62722-2-1 | 5-35 °C |
| Light distributor | Refractor lens |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Nominal operation time | 1 h |
| Exchangeable control gear | Yes |
Downloads
Description

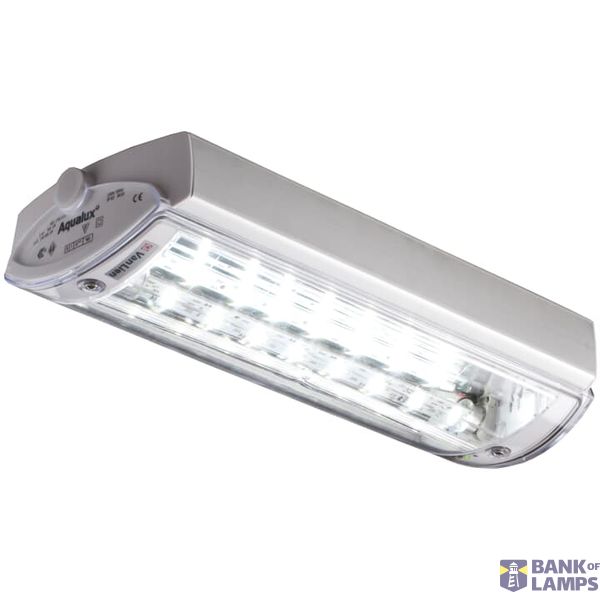

Self-contained 3 watt, maintained surface mount led luminaire, including control module, series Aqualux - wireless - bluetooth
