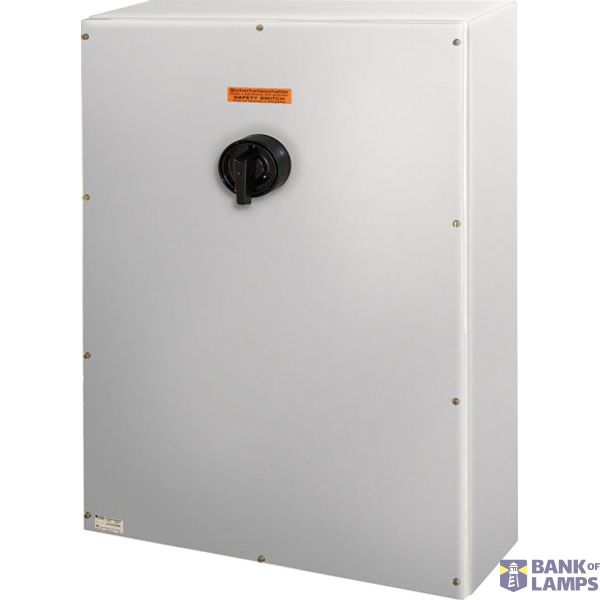

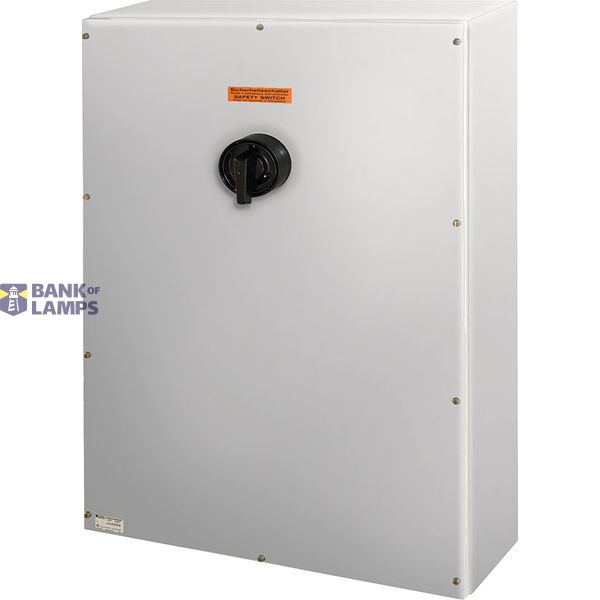

700A 3pole 316L 4xM80 1xM25 Z22 switch
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 700A 3pole 316L 4xM80 1xM25 Z22 switch |
| Brand | EATON |
| ETIM | EC000216 |
| Number of poles | 3 |
| Rated operating voltage | 0-690 V |
| Degree of protection (IP), front side | IP66 |
| Version as main switch | Yes |
| Version as safety switch | No |
| Version as maintenance-/service switch | No |
Packing details
| Packing level 1 | 4251510741280 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | Yes |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Turn button |
| Colour control element | Black |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 690 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Complete device in housing |
| Rated permanent current at AC-21, 400 V | 700 A |
| Version as reversing switch | No |
| Degree of protection (NEMA) | Other |
Description
Ex-Safety Switch 700 A, Standard for Zone 22, GHG 981, Enclosure material: stainless steel, electro-polished3-pole , Auxiliary contact: 1NO, 2 x M80 metal thread with threaded plug, 1 x M25 metal thread with threaded plug, direct entry
