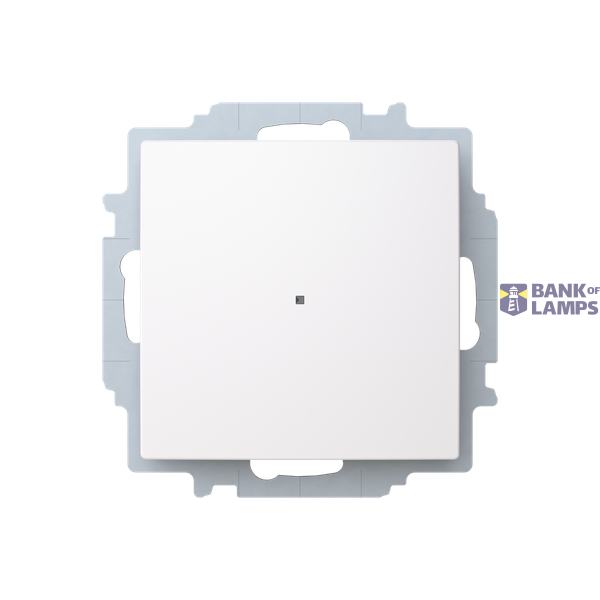

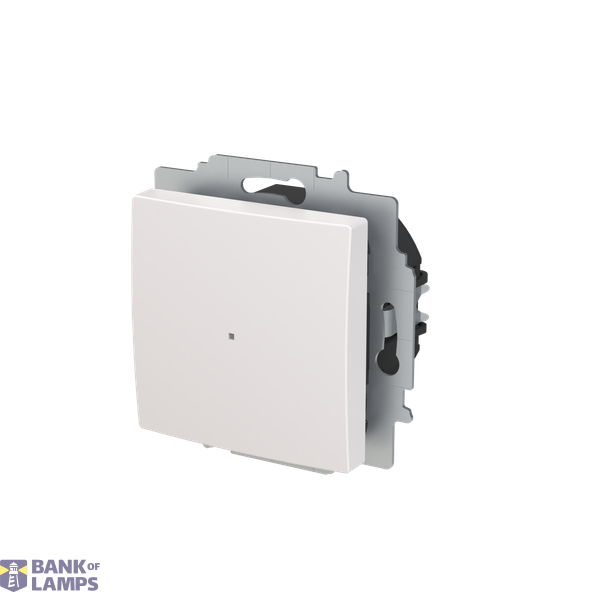

64851-UC-916-510 LED dim. insert flex, 1 g. semi comp
Order only
Price (excl. VAT):
104,32 €
EAN: 4011395321621
MPN: 2CKA006500A0794
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 64851-UC-916-510 LED dim. insert flex, 1 g. semi comp |
| Brand | ABB |
| Categories |
Switches
Dimmer |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Assembly arrangement | Basic element with central cover plate |
| Method of operation | Push button |
| Frequency | - Hz |
| Type of load | Universal and LED Retrofit |
| Nominal voltage | 230 V |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 71 mm |
| Device height | 71 mm |
| Device depth | 46.35 mm |
| Max. switching power LED | 240 W |
Packing details
| Packing level 1 | 4011395321621, 4011395321621 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Black |
| Halogen free | Yes |
| Surface protection | Untreated |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Mounting with claw and screw |
| Light value memory | Yes |
| Substation input | Yes |
| RAL-number (similar) | 9003 |
| Serial dimmer | No |
| Applicable with movement sensor | Yes |
| Applicable with transmission button | Yes |
| Applicable with infrared button | No |
| Applicable with presence indicator | Yes |
| Applicable with button | Yes |
| Applicable with time switch/timer | Yes |
| Impact strength | IK00 |
| Control voltage | 230 V |
| Transparent | No |
| Surface finishing | Glossy |
| Core cross section | - mm² |
| IFTTT support available | No |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Min. depth of built-in installation box | 32 mm |
| App control via Bluetooth | No |
| Nominal power resistive load | - W |
| Nominal power inductive load | - VA |
| Nominal power capacitive load | - VA |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Description
2-wire connection (neutral conductor not required) Neutral conductor optionally connectable (recommended for the connection of low loads < 10 W/VA). Touch dimmer for switching lighting systems. Operation in 1gang 2way installations via push switch-unit for combination with flush-mounted units. Operation also possible via conventional push buttons (2020 US, 2021/6 UK). Optimised for dimming of retrofit LED lamps (LEDi). For dimmable Retrofit-LEDs (LEDi). For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers. For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps. Mix operaton of LEDi with conventional loads possible. With manually adjustable operating mode: trailing / leading edge control. With adjustable minimum brightness. With light-level memory and minimum brightness memory. Low-noise level by MOSFET transistors. With electronic short-circuit protection. With electronic overload protection. power: 3-240 VA (LEDi)
