  • 61 2/1 25 WS Luminaire connection terminal with 3 terminals 0,5-2,5mm²

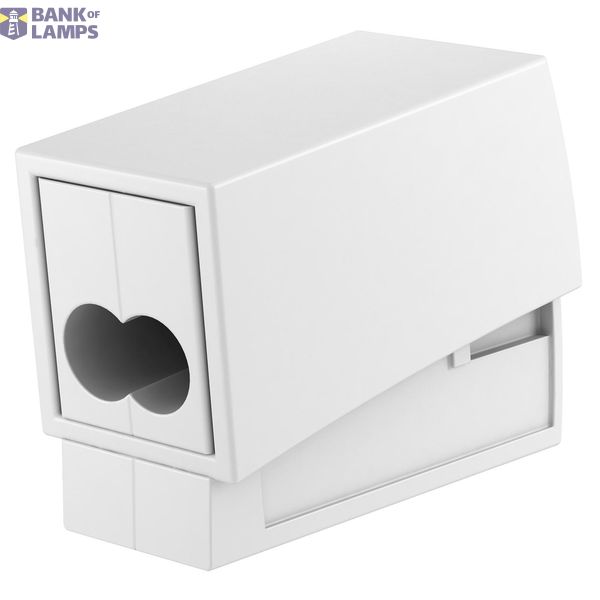

61 2/1 25 WS Luminaire connection terminal with 3 terminals 0,5-2,5mm² image 1
61 2/1 25 WS Luminaire connection terminal with 3 terminals 0,5-2,5mm² image 2
61 2/1 25 WS Luminaire connection terminal with 3 terminals 0,5-2,5mm² thumbnail 1
61 2/1 25 WS Luminaire connection terminal with 3 terminals 0,5-2,5mm² thumbnail 2
OBO Bettermann

61 2/1 25 WS Luminaire connection terminal with 3 terminals 0,5-2,5mm²

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name 61 2/1 25 WS Luminaire connection terminal with 3 terminals 0,5-2,5mm²
Brand OBO Bettermann
Harmonized System Code 8536 9010 00
ETIM EC000447
Colour White
Model Double conductor terminal
Max. cable cross section 2.5 mm²
Min. cable cross section (installation side) 0.5 mm²
Min. cable cross section (luminaire side) 0.5 mm²

Packing details

Packing level 1 4012195850847
Packing level 2 4012195850854
Packing level 3 4012197045364

Downloads

Product data sheet

Description

Pievienojuma spaile pakāpjveida kabeļu un vadu pievienošanai bez darbarīka. Pārbaudīts atb. EN 60998 Spailes bez skrūvēm vienas dzīslas vadu savienošanai. Nominālais šķērsgriezums: <% AID: 4: vērtība%> Nominālais spriegums 450 V Nominālā strāva 24 A Noņemšanas garums: 8-9 mm Pārbaudes atvere: fāzes regulators un tausts (maks. Ø 2 mm) Maks. Pieļaujamā vides temperatūra saskaņā ar EN 60998:T 110°C
